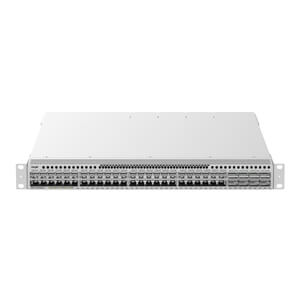

B6510-48VS8CQ Switch

Get Quotation
The Ruijie B6510-48VS8CQ is a new generation high performance and high density 25GbE switch designed for cloud-scale datacenter and campus networks, which provide a powerful cache capacity and advanced scheduling mechanism driven large scale line-rate non-blocking network.
B6510-48VS8CQ introduces 48-port fully backward-compatible 25GbE SFP28 interface and 8-port 100GbE QSFP28 interface to transparently migrate existing data center fabrics from 10Gbps and 40Gbps speeds to 25Gbps and 100Gbps. The platform provide hot-pluggable 1+1 redundancy power module and 3+1 redundancy cooling fan module to meet the high reliability requirement of datacenter and carrier networks.NOTE：Ruijie B6510-48VS8CQ is a bare metal switch hardware system with Open Network Install Environment (ONIE). Customer should install networking operation system before use, or contact Ruijie Networks co. for OS support.

Performance

  • 8 × QSFP28 100GbE Ports & 48 × SFP28 25GbE Ports
  • Base on Broadcom BCM56873 (Trident III)
  • Flexible 100GbE, 40GbE, 25GbE and 10GbE support
  • Up to 4.0 Tbps (full duplex)
  • Up to 2003.4 Mpps
  • Wire speed L2 and L3 forwarding
  • Latency from 814ns for 25GbE (cut-through mode)

Data Center Optimized Design

  • Typical power of under 4W per 100GbE port and 1.5W per 25GbE port
  • Over 94% efficient power supplies
  • 1+1 redundant & hot-swappable power
  • 3+1 redundant & hot-swappable fans
  • Front-to-rear cooling
  • Tool less maintenance and simple installation

Cloud Networking Ready

  • 128 ECMP for hyper-scale networks
  • Dynamic Load Balancing for advanced multi-pathing
  • Advanced Congestion Management for NVMe and AI workloads
  • Flow aware traffic scheduling
  • Shared 32MB Buffer with burst absorption
  • Up to 288K MAC and 168K Host entries
  • Over 344K IPv4 Routes
  • Over 96K IPv6 Routes

Resilient Control Plane

  • Intel Xeon D-1527 Processor (Formerly Broadwell DE)
  • 8GB DRAM

B6510-48VS8CQ Switch price in Dubai

Switch Model

B6510-48VS8CQ
Ports

48×SFP28 + 8×QSFP28
Max 100/40GbE Ports

8
Max 25/10GbE Ports

48
Throughput (full duplex)

4.0Tbps
Packets/Second

2003.4Mpps
Latency (cut-through mode)

814ns
CPU

Intel Xeon D-1527
System Memory

8GB (Up to 32GB)
System Storage

≥64GB
BMC Option

Yes
Switch ASIC

Broadcom BCM56873 (Trident III)
Packet Buffer Memory

32MB (Dynamic Buffer Allocation)
10/100/1000 MGMT Ports

1
RS-232 Serial Ports

1 (RJ-45)
USB Ports

1
Hot-swap Power Supplies

2 (1+1 redundant)
Hot-swappable Fans

4 (3+1 redundant)
Airflow Option

Yes

(Forward and Reversed airflow)
Typical/Max Power Draw

258.9W/301.0W
Typical/Max Heat Dissipation

883.6/1027.3 BTU/hr
Size(W×H×D)

17.40×1.73×22.04 in.

(442×44×560mm)
Weight

22.7 pounds (10.3kg)
Power Supplies

550W

(Forward and Reversed airflow)



Model

Description
B6510-48VS8CQ

48 fixed 25G SFP28 ports, 8 fixed 100G QSFP28 ports.

2 slots for power supply modules.

4 slots for fan modules.

2 power supply modules and 4 fan modules already included.
M6510-FAN-F

Fan module, front-to-rear airflow.

With up to 4 fan modules, support 3+1 redundancy.
RG-PA550I-F

AC power supply module, front-to-rear airflow.

With up to 2 power modules, support 1+1 redundancy.
