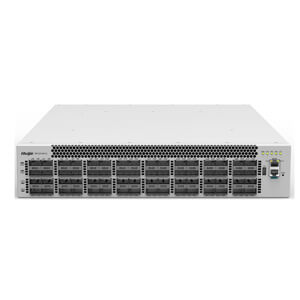

B6520-64CQ Switch

B6520-64CQ Switch price in Dubai

We give the best Best B6520-64CQ Switch price in Dubai. The Ruijie B6520-64CQ switch is a new generation high density 100GbE switch designed for cloud-scale datacenter and campus networks, which provide a powerful cache capacity and advanced scheduling mechanism driven large scale line-rate non-blocking network.B6520-64CQ provides 64-port backward-compatible 100GbE QSFP28 interface to transparently migrate existing data center fabrics from 40Gbps speeds to 100Gbps. The platform provide hot-pluggable 1+1 redundancy power module and 2+1 redundancy cooling fan module to meet the high reliability requirement of datacenter and carrier networks.NOTE：Ruijie B6520-64CQ is a bare metal switch hardware system with Open Network Install Environment (ONIE). Customer should install networking operation system before use, or contact Ruijie Networks co. for OS support

Performance

64 × QSFP28 100GbE Ports
Base on Broadcom BCM56970 (Tomahawk II)
Flexible 100GbE, 40GbE support
Up to 12.8 Tbps (full duplex)
Up to 4400 Mpps
Wire speed L2 and L3 forwarding
Latency from 1137ns for 100GbE (cut-through mode)

Data Center Optimized Design

Typical power of under 4.5W per 100GbE port
Over 94% efficient power supplies
1+1 redundant & hot-swappable power
2+1 redundant & hot-swappable fans
Front-to-rear cooling
Tool less maintenance and simple installation

Cloud Networking Ready

128 ECMP for hyper-scale networks
Dynamic Load Balancing for advanced multi-pathing
Advanced Congestion Management for NVMe and AI workloads
Flow aware traffic scheduling
Shared 42MB Buffer with burst absorption
Up to 264K MAC and 128K Host entries
Over 384K IPv4 Routes
Over 128K IPv6 Routes

Resilient Control Plane

Intel Xeon D-1527 Processor (Formerly Broadwell DE)
8GB DRAM

Specifications :

Switch Model	B6520-64CQ
Ports	64×QSFP28
Max100/40GbE Ports	64
Throughput (full duplex)	12.8Tbps
Packets/Second	4400Mpps
Latency (cut-through mode)	1137ns
CPU	Intel Xeon D-1527
System Memory	8GB (Up to 32GB)
System Storage	≥64GB
BMC Option	Yes
Switch ASIC	Broadcom BCM56970(Tomahawk II)
Packet Buffer Memory	42MB (Dynamic Buffer Allocation)
10/100/1000 MGMT Ports	1
RS-232 Serial Ports	1 (RJ-45)
USB Ports	1
Hot-swap Power Supplies	2 (1+1 redundant)
Hot-swappable Fans	3 (2+1 redundant)
Airflow Option	Yes (Forward and Reversed airflow)
Typical/Max Power Draw	610W/785W
Typical/Max Heat Dissipation	2081.41/2678.53 BTU/hr
Size(W×H×D)	17.32×3.39×22.83 in. (440×86×580mm)
Weight	38.5 pounds (17.5kg)
Power Supplies	800W (Forward and Reversed airflow)

Standard Compliance

EMC	Emissions: FCC, EN55022, EN61000-3-2, EN61000-3-3 or EN61000-3-11, EN61000-3-12 (as applicable) Immunity: EN55024 Emissions and Immunity: EN300 386
Safety	UL/CSA 60950-1, EN 60950-1, IEC 60950-1 CB Scheme with all country differences
Certifications	North America (NRTL) European Union (EU) BSMI (Taiwan) C-Tick (Australia) CCC (PRC) MSIP (Korea) EAC (Customs Union) VCCI (Japan)
European Union Directives	2006/95/EC Low Voltage Directive 2004/108/EC EMC Directive 2011/65/EU RoHS Directive

Power Supply Speciﬁcations

Power Supply	800W
Input Voltage	100-240V AC 240V DC
Typical Input Current	10-5A (AC) 4.5A (DC)
Input Frequency (AC)	50~60Hz
Input Connector	IEC 320-C13
Efficiency (Typical)	94% Platinum

Environmental characteristics

Operating Temperature	32 to 113° F (0 to 45°C)
Storage Temperature	-40 to 158° F (-40 to 70°C)
Relative Humidity	5 to 95% non-condensing
Altitude (Operating)	Designed to meet: 0 to 10,000ft
Altitude (Non-operating)	-1000ft to 30,000ft

B6520-64CQ Switch
