OMNIVSINT1000
We give the best OMNIVSINT1000 price in Dubai. Also we are the top tripp lite Ups system distributors in Dubai. In addition to this we are the Tripp-lite product partners in Dubai. Beyond this we give great tripp-lite Ups system support services in Dubai. More than this we provide Tripp-lite product re-sellers in Dubai. Beyond this we are the best Tripp lite Ups system product dealers in Dubai.

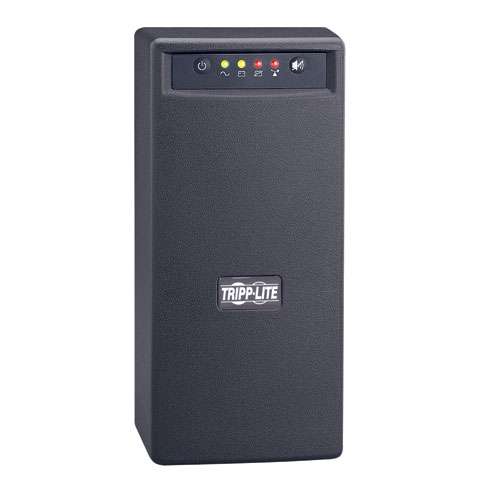

- OMNIVSINT1000 Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
- Supports entry level PCs up to 60 minutes during blackouts to enable shutdown without data loss
- Regulates brownouts as low as 159 volts back to usable levels without using battery power
- 6 IEC320 C13 outlets with complete AC surge suppression
- C14 accepts user-supplied AC power cord with country-specific plug
- USB port and cable enables unattended shutdown in the case of extended power failure
- PowerAlert software available via free download from www.tripplite.com
- Single line phone surge suppression protects standard dialup/DSL phone connection
- Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
- 1000VA power handling ability supports a variety of sensitive electronic equipment
- 5 minutes full load runtime (1000VA), 12 minutes half load runtime (500VA)
- Supports battery replacement via built-in access panel
- Attractive full color retail packaging.
OUTPUT |
| Output Volt Amp Capacity (VA) | 1000 | | Output Watt Capacity (Watts) | 500 | | Nominal Output Voltage(s) Supported | 220V; 230V; 240V | | Nominal Voltage Details | 230V inverter nominal voltage output | | Frequency Compatibility | 50 / 60 Hz | | Output Voltage Regulation (Battery Mode) | +/- 5% | | Output Receptacles | (6) C13 | | Included Output Power Cables | Includes 2 C13 to C14 output power cables | | Output AC Waveform (AC Mode) | Sine wave | | Output AC Waveform (Battery Mode) | PWM sine wave |
|
INPUT |
| Rated input current (Maximum Load) | 2.4A | | Nominal Input Voltage(s) Supported | 230V AC | | UPS Input Connection Type | C14 inlet | | UPS Input Connection Description | Attached 15cm line cord with C14 inlet. The C14 inlet accepts a user-supplied AC power cord with country specific plug. | | UPS Input Cord Length (ft.) | 0.5 | | UPS Input Cord Length (m) | 0.2 | | Input Phase | Single-Phase |
|
BATTERY |
| Full Load Runtime (min.) | 5 min. (500w) | | Half Load Runtime (min.) | 12 min. (250w) | | DC System Voltage (VDC) | 12 | | Battery Recharge Rate (Included Batteries) | Less than 9 hours from 10% to 90% | | Internal UPS Replacement Battery Cartridge | RBC51 | | Battery Access | Provides the access door for battery | | Battery Replacement Description | Hot-swappable, user replaceable batteries | | Expandable Runtime | No |
|
VOLTAGE REGULATION |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 159 | | Undervoltage Correction | Input voltages between 159 and 199 are boosted by 14% |
|
USER INTERFACE, ALERTS & CONTROLS |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation | | Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch. Also once silenced, alarm will re-sound to indicate low-battery status. | | Audible Alarm | Audible alarm indicates power-failure and low-battery conditions | | LED Indicators | 4 LEDs indicate line power, battery power, overload and battery low/replace status |
|
SURGE / NOISE SUPPRESSION |
| UPS AC Suppression Joule Rating | 508 | | UPS AC Suppression Response Time | Instantaneous | | UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out) | | EMI / RFI AC Noise Suppression | Yes |
|
PHYSICAL |
| Installation Form Factors Supported with Included Accessories | Tower | | Installation Form Factors Supported with Optional Accessories | Wallmount(UPSWM – tower mounting kit) | | Primary Form Factor | Tower | | UPS Power Module Dimensions (hwd, cm) | 27.3 x 13.3 x 19 | | UPS Power Module Weight (kg) | 7.6 | | UPS Shipping Dimensions (hwd / cm) | 35.6 x 21.6 x 27.9 | | Shipping Weight (kg) | 8.9 | | UPS Housing Material | PVC |
|
ENVIRONMENTAL |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius | | Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius | | Relative Humidity | 0 to 95%, non-condensing | | AC Mode BTU / Hr. (Full Load) | 147.8 | | Battery Mode BTU / Hr. (Full Load) | 254 | | AC Mode Efficiency Rating (100% Load) | 92% |
|
COMMUNICATIONS |
| Communications Interface | USB | | PowerAlert Software | Free download from www.tripplite.com | | Communications Cable | USB interface cable included | | WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
|
LINE / BATTERY TRANSFER |
| Transfer Time | 4 milliseconds | | Low Voltage Transfer to Battery Power (Setpoint) | 159 | | High Voltage Transfer to Battery Power (Setpoint) | Yes |
|
SPECIAL FEATURES |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported | | High Availability UPS Features | Hot swappable batteries |
|
CERTIFICATIONS |
| UPS Certifications | CE; Provides Tested to GOST (Russia); Filterd to SASO (Saudi Arabia); Tested to IRAM (Argentina); Meets FCC Part 15 Category B (EMI) | | UPS Certification Details | CE IEC62040 |
|
WARRANTY |
| Product Warranty Period (International) | 2-year limited warranty | | Product Warranty Period (Mexico) | 2-year limited warranty | | Product Warranty Period (Puerto Rico) | 2-year limited warranty |
|
