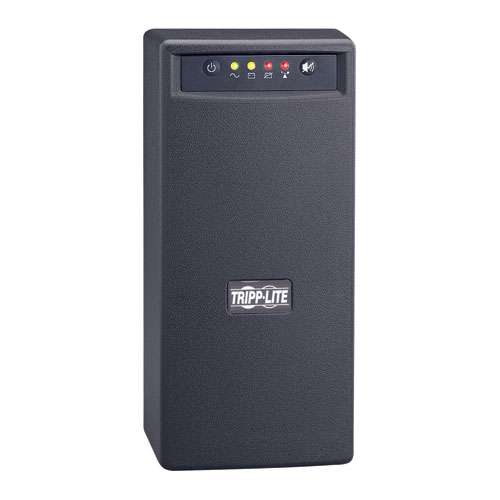

OMNIVSINT800
We give the best OMNIVSINT800 price in Dubai. Also we are the top Tripp lite Ups system dealers in Dubai. More than this we are the top tripp lite Ups system partners in Dubai. In addition to this we are the best OMNIVSINT800 product suppliers in Dubai. In addition to this we are the top tripp lite distributors in Dubai.
- We give OMNIVSINT800 Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
- In addition to this give supports entry level PCs up to 40 minutes during blackouts to enable shutdown without data loss
- More than this regulates the brownouts as low as 159 volts back to usable levels without using battery power
- Beyond this provides the 4 IEC320 C13 outlets with complete AC surge suppression
- Also give C14 inlet accepts user-supplied AC power cord with country specific plug
- More than this provides the USB port and cable enables unattended shutdown in the case of extended power failure
- PowerAlert software available via free download from www.tripplite.com
- Single line phone suppression protects standard dialup/DSL phone connection
- Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
- 800VA power handling ability supports a variety of sensitive electronic equipment
- 3.5 minutes full load runtime(800VA), 11.5 minutes half load runtime(400VA)
- Supports battery replacement via built-in access panel
- Optional PDUBHV10 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
- Attractive full color retail packaging.
OUTPUT |
| Output Volt Amp Capacity (VA) | 800 | | Output Watt Capacity (Watts) | 475 | | Nominal Output Voltage(s) Supported | 220V; 230V; 240V | | Nominal Voltage Details | 230V inverter nominal voltage output | | Frequency Compatibility | 50 / 60 Hz | | Output Voltage Regulation (Battery Mode) | +/- 5% | | Output Receptacles | (4) C13 | | Included Output Power Cables | Includes 2 C13 to C14 output power cables | | Hot-Swap PDU options | PDUBHV10 (2U / 8 C13 outlets) | | Output AC Waveform (AC Mode) | Sine wave | | Output AC Waveform (Battery Mode) | PWM sine wave |
|
INPUT |
| Rated input current (Maximum Load) | 2.4A | | Nominal Input Voltage(s) Supported | 230V AC | | UPS Input Connection Type | C14 inlet | | UPS Input Connection Description | Attached 15cm line cord with C14 inlet. The C14 accepts a user-supplied AC power cord with country-specific plug. | | UPS Input Cord Length (ft.) | 0.5 | | UPS Input Cord Length (m) | 0.2 | | Input Phase | Single-Phase |
|
BATTERY |
| Full Load Runtime (min.) | 3.5 min. (475w) | | Half Load Runtime (min.) | 11.5 min. (240w) | | DC System Voltage (VDC) | 12 | | Battery Recharge Rate (Included Batteries) | Less than 4.5 hours from 10% to 90% | | Internal UPS Replacement Battery Cartridge | RBC51 | | Battery Access | Gives the best Battery access door | | Battery Replacement Description | Hot-swappable, user replaceable batteries | | Expandable Runtime | No |
|
VOLTAGE REGULATION |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 159 | | Undervoltage Correction | Input voltages between 159 and 199 are boosted by 14% |
|
USER INTERFACE, ALERTS & CONTROLS |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation | | Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status | | Audible Alarm | Audible alarm indicates power-failure and low-battery conditions | | LED Indicators | 4 LEDs indicate line power, battery power, overload and battery low/replace status |
|
SURGE / NOISE SUPPRESSION |
| UPS AC Suppression Joule Rating | 340 | | UPS AC Suppression Response Time | Instantaneous | | UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out) | | EMI / RFI AC Noise Suppression | Yes |
|
PHYSICAL |
| Installation Form Factors Supported with Included Accessories | Tower | | Installation Form Factors Supported with Optional Accessories | Wallmount(UPSWM – tower mounting kit) | | Primary Form Factor | Tower | | UPS Power Module Dimensions (hwd, cm) | 27.3 x 13.3 x 19 | | UPS Power Module Weight (kg) | 8.9 | | UPS Shipping Dimensions (hwd / cm) | 35.6 x 21.6 x 27.9 | | Shipping Weight (kg) | 10.2 | | UPS Housing Material | PVC |
|
ENVIRONMENTAL |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius | | Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius | | Relative Humidity | 0 to 95%, non-condensing | | AC Mode BTU / Hr. (Full Load) | 49.9 | | Battery Mode BTU / Hr. (Full Load) | 455.5 | | AC Mode Efficiency Rating (100% Load) | 97% |
|
COMMUNICATIONS |
| Communications Interface | USB | | PowerAlert Software | Free download from www.tripplite.com | | Communications Cable | USB interface cable included | | WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
|
LINE / BATTERY TRANSFER |
| Transfer Time | 2-4 milliseconds | | Low Voltage Transfer to Battery Power (Setpoint) | 159 |
|
SPECIAL FEATURES |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported | | High Availability UPS Features | Hot swappable batteries | | Green Energy-Saving Features | In addition to this we give greater than 95% efficiency – GREEN UPS |
|
CERTIFICATIONS |
| UPS Certifications | Tested to UL1778 (USA); CE; Provides the Tested to GOST (Russia); Tested to SASO (Saudi Arabia); Tested to IRAM (Argentina) |
|
WARRANTY |
| Product Warranty Period (International) | 2-year limited warranty | | Product Warranty Period (Mexico) | 2-year limited warranty | | Product Warranty Period (Puerto Rico) | 2-year limited warranty |
|
