Description
RG-AP130(W2) Wireless Access Point Series price in Dubai

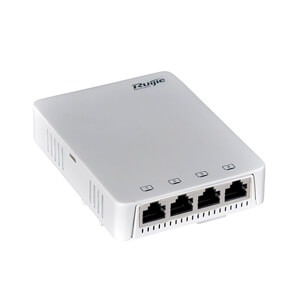

Ruijie RG-AP130(W2) Wall AP is designed for wireless deployment in hotels, offices, residential buildings and settings alike. The wall-mountable AP has the same size as a standard 86-type faceplate with integrated Ethernet and voice ports. Featuring a concise design and easy deployment, the AP enables zero disruption to the interior finishes and offers the best solution for scenarios with delicate interior design.The dual-radio, dual-band AP supports concurrent operation of 802.11a/n/ac and 802.11b/g/n. We give the best Ruijie product support services in Dubai. Also we are the best RG-AP130(W2) Wireless Access Point Series price in Dubai.
The RG-AP130 (W2) equipped with the advanted Wave 2 RF chip, supports the feature of MU-MIMO and improves the user experience for concurrent access. RG-AP130(W2) provides 4 1000Mbps or 100Mbps RJ-45 ports and 1 RJ-45 Voice/PoE pass-through port (RJ-11 combo), delivering optimal wireless network coverage and cost protection with additional wired network interfaces and voice ports.
Feature Highlights:
●RG-AP130(W2) IEEE 11ac Wave 2 Ready
●Fast and Easy WiFi Deployment
●Reuse Existing Cabling Structure for Investment Protection
Specifications :
| Model | RG-AP130(W2) | |
| Model | RG-AP130(W2) | |
| Target Deployments | For wireless deployment in hotels, offices, residential buildings | |
Basic Specifications | Radio | Concurrent dual-radio dual-band |
| Protocol | 802.11a/b/g/n/ac, Wave 2 | |
| Operating Bands | 2.4GHz and 5GHz | |
| Antenna | Built-in omnidirectional antenna | |
2×2 MU-MIMO | ||
| Antenna Gain | ||
| Max Throughput | ||
867Mbps@5GHz | ||
1.167Gbps per AP | ||
| Spatial Streams | 2 | |
| Modulation | DSSS:[email protected]/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps | |
OFDM:64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps | ||
MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM | ||
MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM | ||
| Receiver Sensitivity | 11b/g：-94dBm(1Mbps)，-74dBm(54Mbps) | |
11a：-90dBm(6Mbps)，-74dBm（54Mbps） | ||
11nHT20：-72dBm@MCS7，-68dBm@MCS15 | ||
11ac HT20：-90dBm（MCS0）, -65dBm（MCS8） | ||
11ac HT40：-85dBm（MCS0）, -60dBm（MCS9） | ||
11ac HT80：-82dBm（MCS0）, -58dBm（MCS9） | ||
| Maximum Transmit Power | ≤100mW (20dBm, transmit power of the RF card only) | |
| IP Rating | IP41 | |
Ports | Service Port | Front: |
4 10/100/1000M Ethernet ports | ||
Side: | ||
1 RJ-45 port (RJ-11 combo) | ||
Rear: | ||
1 10/100/1000M uplink port | ||
1 RJ-45 pass-through port (RJ-11 combo) | ||
| Management Port | 1 console port (Micro USB) | |
Power | Power Supply | PoE (802.3af), local DC power supply |
| Power Consumption | <8W | |
| WLAN | Maximum clients per AP | Up to 32 |
| BSSID capacity | Up to 8 per radio | |
Up to 16 per AP | ||
| SSID hiding | Support | |
| Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID | Support | |
| Remote Intelligent Perception Technology (RIPT) | Support | |
| X-speed | Support | |
| Intelligent load balancing based on the number of users or traffic | Support | |
| STA control | SSID/radio-based | |
| Bandwidth control | STA/SSID/AP-based speed control | |
| Preference for 5GHz (band select) | Support | |
| Wireless position tracking | Support | |
| Dynamic Frequency Selection(DFS) | Future release support | |
Security | PSK, Web, and 802.1x authentication | Support |
| Data encryption | WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) | |
| QR code authentication | Support | |
| SMS authentication | Support | |
| PEAP authentication | Support | |
| Data frame filtering | Whitelist, static/dynamic blacklist | |
| User isolation | Support | |
| Rogue AP detection and countermeasure | Support | |
| Dynamic ACL assignment | Support | |
| RADIUS | Support | |
| CPU Protection Policy (CPP) | Support | |
| Network Foundation Protection Policy (NFPP) | Support | |
| Wireless Intrusion Detection System(WIDS) | Support | |
| Wireless Intrusion Prevention System (WIPS) | Support | |
| Routing | Ipv4 address | Static IP address or DHCP reservation |
| ICMPv6 | Support | |
| Ipv6 address | N/A | |
| Ipv6 tunnel | N/Asupport | |
| Ipv6 transparent transmission | SupportN/A | |
| Multicast | Multicast to unicast conversion | |
| Management and Maintenance | Network management | SNMP v1/v2C/v3, Telnet, TFTP, FTP and Web management |
| Visualized wireless heat map analysis | Support | |
(need to integrate with SNC)Support | ||
| Real-time spectrum analysis | Support | |
(need to integrate with SNC)Support | ||
| Fault detection and alarm | Support | |
| Cloud AC management | Support | |
| Statistics and logs | Support | |
| FAT/FIT switching | The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC. | |
The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet. | ||
| External Characteristics | Lock | Standard: Anti-theft screws and ordinary screws |
Optional: Lock and key | ||
| LED Indicators | 1 LED status indicator | |
| Relevant Standard | Wi-Fi Alliance Certification | Support |
| Safety Standard | GB4943, EN/IEC 60950-1 | |
| EMC Standard | GB9254, EN301 489 | |
| Health Standard | EN 62311 | |
| Radio Standard | EN300 328, EN301 893 | |
| Vibration Standard | IEC60068－2-31, ETSI EN300 019, | |
NEBS GR-63-CORE | ||
| Dimensions (W x D x H) (mm) | 116 × 86 × 42 | |
Specifications | Weight | 0.23kg |
| Work Environment | Temperature | Operating Temperature: -10°C to 45°C |
Storage Temperature: -40°C to 70°C | ||
| Humidity | Operating Humidity: 10% to 95% (non-condensing) | |
Storage Humidity: 5% to 95% (non-condensing) | ||
| Installation Mode | Standard 86-type faceplate installation | |
Applications:
RG-MACC Cloud Deployment
RG-MACC Solution Architecture
As the RG-MACC (Managed @ Cloud Center) solution component, the RG-AP130 Wall AP Series is designed for wireless deployment in hotels, offices, residential buildings and settings alike.
The Wall AP Series achieves unified management on cloud through the cloud-based wireless control software (RG-MACC). The cloud controller supports device configuration, upgrade and monitoring in groups. Working with Ruijie RG-MACC Platform, the AP Series enables advertising push to Wi-Fi users and maximizes the marketing values.
The RG-AP130 Aps can integrate with Ruijie RG-MACC that streamlines user authentication and advertising push. Social community authentication via Facebook, Twitter and WeChat is supported to collect customer information for big data analysis.
Compatible with the RG-MACC platform, the RG-AP130 Wall AP Series is able to scale its deployment according to the evolving requirements of networks as shown in the above solution diagram.
4D Hospitality Solution
4D Hospitality Solution
Ruijie helps you to innovate your hotel with a smart network. Our 4D Hospitality Solution features ubiquitous Wi-Fi, robust backbone, Layer 7 security protection and unified management to transform your hotel network into a revenue-generating asset with a competitive edge.
The AP130 Wall AP Series can be deployed in hotel rooms. The mini-sized wall-mountable AP has the same size as a standard 86-type faceplate with integrated Ethernet and VoIP ports. Featuring a compact design and easy deployment, the AP enables zero disruption to the interior finishes and offers the best solution for scenarios with delicate interior design. This breaks through traditional wireless network construction methods by reusing existing network cables and minimizes the impact of network construction in hotels or similar settings. As no additional cabling is required, the Wall AP delivers maximum business agility and investment protection.
Smart Aps can be deployed in the corridors and public areas to provide wireless access. The whole network can be centrally managed via the on-premises hardware WLAN controller and Ruijie’s network management software RG-SNC . Also another option can be to manage the whole network using Ruijie’s RG-MACC Managed Cloud Solution to unify management and configuration of Aps. In addition to this switches and gateway devices, reducing the total cost of investment while ensuring high usability.
