Description
We give the best RG-WS6108 High-Performance Wireless Controller Dubai. Ruijie RG-WS6108 High-Performance Wireless Controller is designed to support the next-generation high-speed wireless network. The RG-WS6108 Wireless Controller can be deployed at either Layer 2 or Layer 3 network to communicate with access point (AP) without any architecture or hardware changes, offering seamless and secure wireless control. The RG-WS6108 Wireless Controller can manage up to 32 wireless APs by default and a maximum capacity of 320 APs (or maximum 640 APs License for Wall AP) with license upgrade. We give the best RG-WS6108 High-Performance Wireless Controller price in Dubai. Also we are the top Ruijie product dealers and distributors in Dubai.
The RG-WS6108 Wireless Controller enables centralized control and management of APs, delivering high transparency and visibility. With Ruijie’s leading management platform Smart Network Commander (RG-SNC) and AP series, the RG-WS6108 Wireless Controller can flexibly manage AP configuration and optimize radio frequency (RF) coverage to enhance the wireless network performance and minimize deployment workload at the same time.
The RG-WS6108 Wireless Controller enables role-based network services with cutting-edge security and clustering technologies. The clustering technology shares wireless user database among multiple controllers and allows users to roam seamlessly across different areas within the network. The RG-WS6108 Wireless Controller thereby delivers smooth wireless voice communications with superior security and availability.

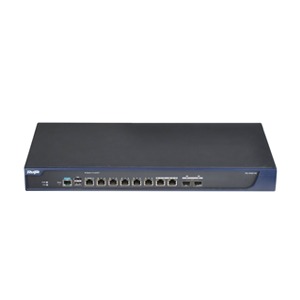

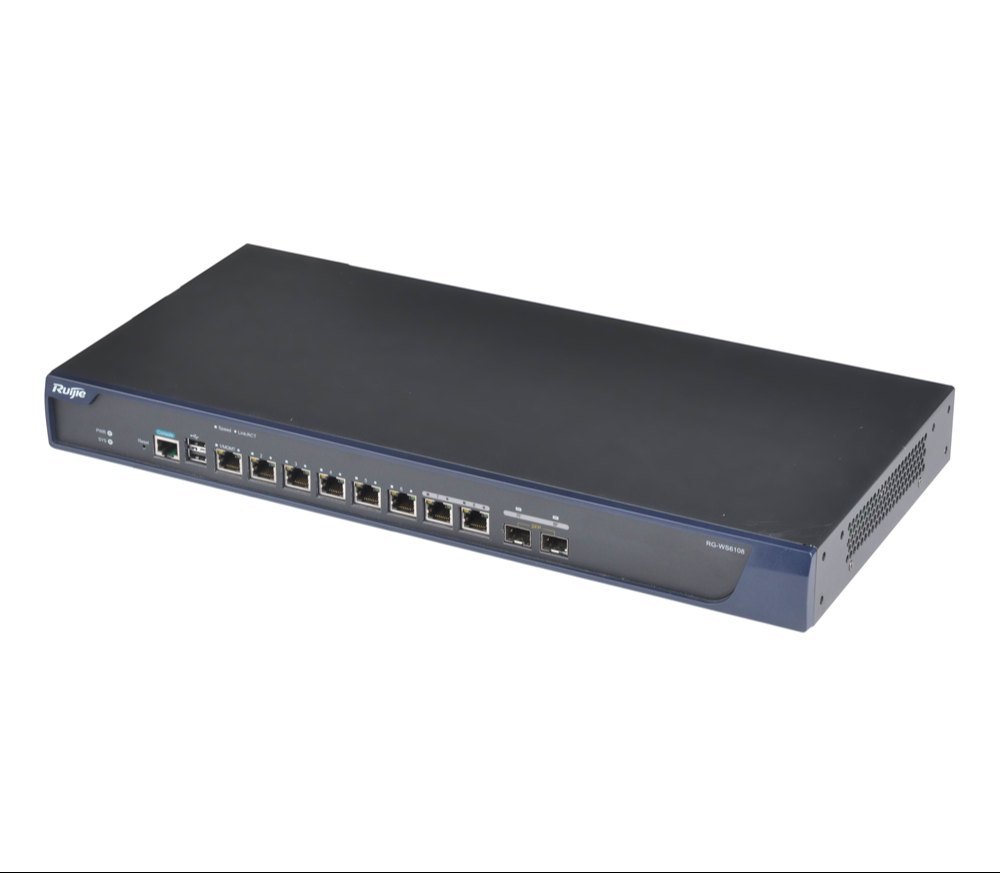

RG-WS6108 High-Performance Wireless Controller Dubai
Specifications :
Model | RG-WS6108 |
Service Ports | 8 Gigabit copper ports 2 Gigabit fiber ports (combo) |
Management Ports | 1 console port |
Operating Temperature | 0ºC to 45ºC |
Operating Humidity | 5% to 95%RH (non-condensing) |
Storage Temperature | -40ºC to 70ºC |
Storage Humidity | 5% to 95%RH (non-condensing) |
Power Consumption | <40W |
Security Standard | GB4943, EN/IEC 60950-1 |
EMC Standard | GB9254, EN301 489 |
Dimensions (W×D×H) (mm) | 440 × 200 × 43.6 |
Weight | 2kg |
Installation | 19-inch rack |
Software :
Model | RG-WS6108 | |
Performance | Default Number of Manageable APs | 32 |
Maximum Number of Manageable APs | 320 / 640 (for Wall AP) | |
Maximum Number of Configurable APs | 2048 | |
Maximum Number of Manageable Users | 10K | |
802.11 Performance | 8Gbps | |
VLAN | 4K | |
Maximum Number of Clients Supported by the Built-in Portal | 7500 | |
ACL | 64K | |
MAC Address Table | 16K | |
ARP Table | 12K | |
IPv6 Neighbour Table | 10K | |
Local Authentication | 300 wireless clients | |
Inter-AC Roaming Switch Time | ≤50ms | |
WLAN | 802.11 LAN Protocol | 802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n |
CAPWAP | Layer 2/Layer 3 network topology between an AP and an AC | |
Enable an AP to automatically discover an accessible AC | ||
Enable an AP to automatically upgrade its software version from an AC | ||
Enable an AP to automatically download configurations from an AC | ||
Network Address Translation (NAT) traversal | ||
Roaming | Intra-AC Layer 2/Layer 3 roaming | |
Inter-AC Layer 2/Layer 3 roaming | ||
Local forwarding intra-AC Layer 2/Layer 3 roaming | ||
Local forwarding inter-AC Layer 2/Layer 3 roaming | ||
Forwarding | Centralized forwarding | |
Local forwarding | ||
Flexible forwarding based on service | ||
Wireless QoS | AP-based bandwidth limiting | |
WLAN-based bandwidth limiting | ||
Static speed limiting and smart speed limiting based on user | ||
Fair balancing | ||
User Isolation | User isolation based on ACs in the whole network | |
User isolation based on AP | ||
User isolation based on WLAN | ||
Reliability | Fast switching between 2 ACs | |
Multi-AC redundancy (1+1 A/A and A/S, N+1) | ||
Multi-AC clustering (N+N) | ||
Remote Intelligent Perception Technology (RIPT) | ||
Uninterrupted service upgrade | ||
STA Management | AP-based STA limiting | |
SSID-based STA limiting | ||
AP-based load balancing | ||
AP traffic-based load balancing | ||
5G priority access | ||
RSSI threshold | ||
STA RSSI Threshold | 0 to 100 | |
STA Idle Timeout | 90 to 86,400 seconds | |
STA Average Data Rate Threshold | 8 to 819,200 with the accuracy of 8 kbps | |
Adjusting Transmit Power of Beacons and Probe Responses | Yes | |
Offline Syslog | Yes | |
RF Management | Setting country codes | |
Manually setting the transmit power | ||
Automatically setting the transmit power | ||
Automatically setting working channels | ||
Automatically adjusting transmission rates | ||
Support blackhole compensation | ||
Support RF interference detection and avoidance | ||
Security | IPv4 Security | Web authentication |
802.1x authentication | ||
PEAP authentication | ||
SMS authentication | ||
QR code authentication | ||
IPv6 Security | 802.1x authentication | |
Web authentication | ||
802.11 Security and Encryption | Multi-SSID | |
SSID hiding | ||
802.11i-compliant PSK authentication | ||
WPA and WPA2 | ||
WEP (WEP/WEP128) | ||
WAPI | ||
TKIP | ||
CCMP | ||
Protection against ARP spoofing | ||
SMP | Integration with SMP | |
CPP | Yes | |
NFPP | Yes | |
WIDS | Yes | |
Internet Protocols | IPv4 Protocol | Ping, Traceroute |
DHCP Server | ||
DHCP Client | ||
DHCP Relay | ||
DHCP Snooping | ||
DNS Client | ||
NTP | ||
Telnet | ||
TFTP Server | ||
TFTP Client | ||
FTP Server | ||
FTP Client | ||
FTP Client | ||
IPv6 Protocol | DNSv6 Client | |
DHCPv6 Relay | ||
DHCPv6 Server | ||
TFTPv6 Client | ||
FTPv6 Server | ||
FTPv6 Client | ||
IPv6 CAPWAP | ||
ICMPv6 | ||
IPv6 Ping | ||
Manual tunnel, automatic tunnel | ||
Manual configuration address, automatic local address | ||
IPv6 Traceroute | ||
IPv4 Routing | Static routing, OSPF | |
IPv4 Routing Table Capacity | 8K | |
IPv4 Static Routing Table Capacity | 1K | |
IPv6 Routing | Static routing | |
IPv6 Routing Table Capacity | 1K | |
IPv6 Static Routing Table Capacity | 1K | |
Management | Network Management | SNMP v1/v2c/v3 |
RMON | ||
Remote probe | ||
Syslog | ||
Network Management Platform | Web management (Smart-web) | |
RG-SNC management | ||
RILL management | ||
Heat Map diagram | ||
User Access Management | Login via console port | |
Login via Telnet | ||
Login via SSH | ||
Upload to FTP | ||
