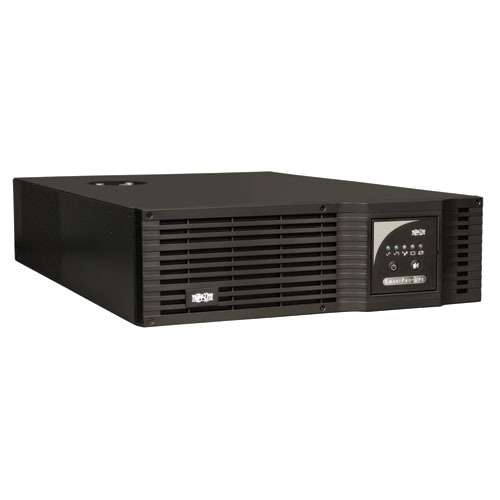

SMX5000XLRT3U

Get Quotation

SMX5000XLRT3U Price in Dubai

We are the top SMX5000XLRT3U suppliers in Dubai. In addition to this we give the best tripp lite SMX5000XLRT3U support services in Dubai. More than this we are the top partners of  tripp lite SMX5000XLRT3U  products in Dubai. Beyond this we are the best tripp lite product partners in Dubai.

Features

  • 5000VA/3750 watt max. output power capacity compatible with International 230V input voltage
  • 3U rack/tower UPS installs in standard 19 inch rack enclosures with an installed depth of only 635mm / 25in
  • Protects sensitive networking equipment from blackouts, voltage fluctuations and transient surges
  • Line Interactive Automatic Voltage Regulation(AVR) corrects 230V nominal input from 170 to 282VAC to usable 230V levels without consuming battery power
  • AVR circuits boost undervoltages from 170 to 199V by 12% and reduce overvoltages from 245 to 282V by 12%
  • Network interfaces support simultaneous communications via USB, DB9 serial or contact closure and SNMPWEBCARD slot
  • Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
  • Communications ports support on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, internal UPS temperature, AC line frequency, timed inverter shutoff and activate self-test
  • Built-in Emergency Power Off(EPO) interface with cable
  • Sine wave output in AC and battery mode
  • Expandable runtime with optional BP48V24-2U(limit 1), BP48V60RT-3U(multi-pack compatible) and BP48V27-2US(multi-pack compatible) external battery packs
  • Half/full load runtime of 27/10 minutes with internal batteries
  • Intelligent battery management system extends battery life
  • Includes 11 output receptacles(3 C19/8 C13)
  • Hardwire input AC connection
  • 3 stage metered LEDs offer current monitoring and battery charge level
  • Mains power and voltage regulation LEDs offer at-a-glance power status information
  • Front panel switches support self-test and alarm cancel functions
  • Included adjustable mounting rails support installation in 4 post 19 inch racks
  • Supports upright tower placement with optional 2-9USTAND accessory
  • CE, GOST, SASO listed.

Specifications

OUTPUT
Output Volt Amp Capacity (VA) 5000
Output kVA Capacity (kVA) 5
Output Watt Capacity (Watts) 3750
Output kW Capacity (kW) 3.75
Power Factor 0.75
Nominal Output Voltage(s) Supported 220V; 230V; 240V
Nominal Voltage Details 230v nominal inverter output voltage
Frequency Compatibility 50 / 60 Hz
Output Voltage Regulation (Line Mode) -17%, +8%
Output Voltage Regulation (Battery Mode) +/- 5%
Output Receptacles (8) C13; (3) C19
Included Output Power Cables Includes 3 C13 to C14 output power cables
Output Circuit Breakers 15A (x3) breaker supports 1 C19 outlet each, 10A (x2) breaker supports 4 C13 outlets each
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (Battery Mode) Pure Sine wave
INPUT
Rated input current (Maximum Load) 27A
Nominal Input Voltage(s) Supported 230V AC
UPS Input Connection Type Hardwire
UPS Input Connection Description Hardwire input supports International 230V input (L, N, PE)
Input Phase Single-Phase
BATTERY
Full Load Runtime (min.) 8.5 min. (3750w)
Half Load Runtime (min.) 20 min. (1875w)
Expandable Battery Runtime Extended runtime supported via optional external battery packs
External Battery Pack Compatibility BP48V24-2U(limit 1); BP48V60RT-3U(multi-pack compatible); BP48V27-2US(multi-pack compatible)
DC System Voltage (VDC) 48
Battery Recharge Rate (Included Batteries) Less than 4 hours from 10% to 90% (typical, full load discharge)
Internal UPS Replacement Battery Cartridge RBC94-3U(quantity 3)
Battery Access Front panel battery access door
Battery Replacement Description Hot-swappable, user replaceable batteries
Expandable Runtime Yes
VOLTAGE REGULATION
Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 170 to 282
Overvoltage Correction Input voltages between 245 and 282 are reduced by 12%
Undervoltage Correction Input voltages between 170 and 199 are boosted by 12%
USER INTERFACE, ALERTS & CONTROLS
Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Audible Alarm Audible alarm indicates power-failure, overload and low-battery conditions
LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 480
UPS AC Suppression Response Time Instantaneous
EMI / RFI AC Noise Suppression Yes
PHYSICAL
Installation Form Factors Supported with Included Accessories 4 post 19 inch rackmount
Installation Form Factors Supported with Optional Accessories 2 post rackmount(2POSTRMKITHD); Tower(2-9USTAND)
Primary Form Factor Rackmount
UPS Power Module Dimensions (hwd, cm) 13.3 x 44.4 x 63.5
Rack Height (U Spaces) 3
Maximum Device Depth (cm) 63.5
UPS Power Module Weight (kg) 64.9
UPS Shipping Dimensions (hwd / cm) 28.6 x 58.4 x 80
Shipping Weight (kg) 82.6
Cooling Method Fans
UPS Housing Material Steel
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 271
AC Mode Efficiency Rating (100% Load) 98%
COMMUNICATIONS
Communications Interface USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
PowerAlert Software Included
Communications Cable USB and DB9 cabling included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer Time 7 ms (AC to Battery); 1 ms (Battery to AC) typical
Low Voltage Transfer to Battery Power (Setpoint) 170
High Voltage Transfer to Battery Power (Setpoint) 282
SPECIAL FEATURES
Grounding Lug Back panel grounding lug
Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
High Availability UPS Features Hot swappable batteries
Green Energy-Saving Features Greater than 95% efficiency – GREEN UPS
CERTIFICATIONS
UPS Certifications CE
UPS Certification Details Class A (EMI)
WARRANTY
Product Warranty Period (International) 2-year limited warranty
Product Warranty Period (Mexico) 2-year limited warranty
Product Warranty Period (Puerto Rico) 2-year limited warranty
