| RED appliance |
Sophos RED 15W
 |

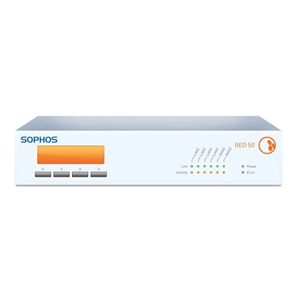

RED 50
 |
| Capacity |
| Maximum users |
Unrestricted |
Unrestricted |
| Maximum throughput |
90 Mbps |
360 Mbps |
| Physical interfaces |
| LAN interfaces |
4 x 10/100/1000 Base-TX |
4 x 10/100/1000 Base-TX |
| WAN interfaces |
1 x 10/100/1000 Base-TX |
2 x 10/100/1000 Base-TX |
| USB interfaces |
1 x USB 2.0 |
2 x USB 2.0 |
| Serial console |
1 x RJ45 console |
1 x RJ45 console |
| LED display |
system, router, Internet, tunnel , 4 x LAN, WAN |
Power, error, 4 x LAN, 2 x WAN |
| Power supply |
110-240 V, 50-60 Hz, max. 1.5 A |
100-240 V, 50-60 Hz, 1.3 A |
| Physical specifications |
| Chassis |
Heavy-duty steel |
Heavy-duty steel |
| Mounting |
Desktop |
Desktop/wall/rack (optional) |
| Dimensions (W x H x D) |
165 x 34 x 134.8 mm |
216 x 44 x 189 mm |
| Weight |
600 g / 1.31 lbs |
1.1 kg / 2.43 lbs |
| Power consumption |
7 W |
38.2 W (max.) |
| Temperature |
0-40°C (operating), -20-80°C (storage) |
0-40°C (operating), -20-70°C (storage) |
| Humidity |
10-90% (operating),
5-95% (storage), non-condensing |
5-90% (operating),
5-95% (storage), non-condensing |
| Safety regulations |
| Certifications |
CE, FCC Class B, VCCI, RCM, UL, CCC |
CE, FCC Class A, VCCI, C-Tick, UL |
