OUTPUT |
| Output Volt Amp Capacity (VA) | 16000 | | Output kVA Capacity (kVA) | 16 | | Output Watt Capacity (Watts) | 14400 | | Output kW Capacity (kW) | 14.4 | | Output Capacity Details | Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30 seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power; Double conversion mode is automatically restored as load levels are reduced to 95% or less | | Power Factor | 0.9 | | Crest Factor | 3:1 | | Nominal Output Voltage(s) Supported | 200V; 208V; 220V; 230V; 240V | | Nominal Voltage Details | Voltage selection via front panel LCD interface | | Frequency Compatibility | 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion | | Frequency Compatibility Details | Output frequency matches input nominal on startup; Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating) | | Output Voltage Regulation (Line Mode) | +/- 2% | | Output Voltage Regulation (Economy Line Mode) | +/- 10% | | Output Voltage Regulation (Battery Mode) | +/- 2% | | Output Receptacles | Hardwire | | Output Receptacle Details | Supports North American 208/240V* output (L1,L2,G) and International 230/220/240V (L,N,PE) hardwire output; *For 120V output with 208/240V (L1,L2,G) input wiring, use optional SU6000XFMR2U transformer | | Output AC Waveform (AC Mode) | Pure Sine wave | | Output AC Waveform (Battery Mode) | Pure Sine wave |
|
INPUT |
| Rated input current (Maximum Load) | 92A (200V), 88.4A (208V), 83.6A (220V), 80A (230V), 76.6A (240V) | | Nominal Input Voltage(s) Supported | 200V AC; 208V AC; 220V AC; 230V AC; 240V AC | | UPS Input Connection Type | Hardwire | | UPS Input Connection Description | Supports North American 208/240V input (L1,L2,G) and International 230/220/240V (L,N,PE) input wiring | | Recommended Electrical Service | 100A @ 200V-240V (L, N, PE), or 100A @ 200V, 208V, or 240V (L1, L2, G) | | Input Phase | Single-Phase |
|
BATTERY |
| Full Load Runtime (min.) | 5.5 minutes (14,400 watts) | | Half Load Runtime (min.) | 13.5 minutes (7200 watts) | | Expandable Battery Runtime | Runtime is expandable with external battery packs | | External Battery Pack Compatibility | BP240V10RT3U; BP240V557C-1PH; BP240V787C-1PH; BP240V1037C-1PH; BP240V1407C-1PH | | Expandable Runtime Description | For best results, add external batteries in multiples of two so that both included 8kVA power modules have an equal number and type of connected battery packs | | DC System Voltage (VDC) | 240 | | Battery Recharge Rate (Included Batteries) | Less than 6 hours from 10% to 90% (typical, full load discharge) | | Battery Replacement Description | Hot-swappable, user replaceable external battery packs | | Expandable Runtime | Yes |
|
VOLTAGE REGULATION |
| Voltage Regulation Description | 2% output voltage regulation in standard online, double-conversion mode | | Overvoltage Correction | Corrects overvoltages up to 300V | | Undervoltage Correction | Corrects undervoltages as low as 100V |
|
USER INTERFACE, ALERTS & CONTROLS |
| Front Panel LCD Display | Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options; LED/LCD panel rotates for viewing in rack/tower formats (see manual) | | Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation; 2 additional switches support set and execute scrolling LCD functions; bundled PDU includes bypass switch to enable hot-swap UPS power module replacement | | Alarm Cancel Operation | Alarm cancel switch | | Audible Alarm | Unique audible alarms for all major UPS, environmental and power conditions (see manual) | | LED Indicators | 6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD screen offers additional information and control options |
|
SURGE / NOISE SUPPRESSION |
| UPS AC Suppression Response Time | Instantaneous | | EMI / RFI AC Noise Suppression | Yes |
|
PHYSICAL |

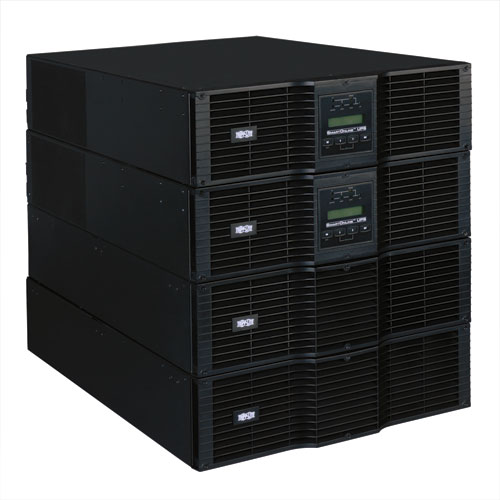

| Included Mounting Accessory Description | 4 sets of adjustable 4 post rack rails included (one for each included 3U module) | | Installation Form Factors Supported with Optional Accessories | 2 post rackmount(2POSTRMKITHD); Tower(2-9USTAND) | | Optional Mounting Accessory Notes | Qty 4 2POSTRMKITHD required; Qty 2 2-9USTAND required | | Primary Form Factor | Rackmount | | UPS Power Module Dimensions (hwd, cm) | 13.1 x 44.5 x 65.6 | | Rack Height (U Spaces) | 12 | | Maximum Device Depth (cm) | 82.6 | | UPS Power Module Weight (kg) | 19.5 | | UPS Dimensions Details | Includes 2 SU8000RT3UPM UPS/Power modules and 2 BP240V10RT3U Battery packs; Listed weights and dimensions for UPS/Power module and Included battery pack each refer to a single unit | | Included Battery Pack Dimensions (hwd / cm) | 13.3 x 44.5 x 63.5 | | Included Battery Pack Weight (kg) | 72 | | UPS Shipping Dimensions (hwd / cm) | 91.4 x 102.2 x 129.5 | | Shipping Weight (kg) | 272.4 | | Cooling Method | Fans | | UPS Housing Material | Steel |
|
ENVIRONMENTAL |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius. | | Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius. | | Relative Humidity | 0 to 95%, non-condensing | | AC Mode BTU / Hr. (Full Load) | 5456 | | AC Economy Mode BTU / Hr. (Full Load) | 2046 | | AC Mode Efficiency Rating (100% Load) | 90% | | AC Economy Mode Efficiency Rating (100% Load) | 96% | | Audible Noise | 60 dBA at front side 1 meter | | Operating Elevation (m) | 0-3000 m |
|
COMMUNICATIONS |
| Communications Interface | USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface | | Network Monitoring Port Description | Applications utilizing the optional network communications card require two SNMPWEBCARD accessories (install one per included power module); Additional contact closure support with optional RELAYIOCARD and RELAYIOMINI interface cards; RELAYIOMINI installation requires removal of panel containing USB ports | | PowerAlert Software | Included | | Communications Cable | USB, DB9 serial and EPO cables included | | WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
|
LINE / BATTERY TRANSFER |
| Transfer Time | No transfer time (0 ms.) in online, double-conversion mode | | Transfer Time (Economy Mode) | 8 milliseconds typical power failure response in optional economy mode | | Low Voltage Transfer to Battery Power (Setpoint) | 100V | | High Voltage Transfer to Battery Power (Setpoint) | 300V |
|
SPECIAL FEATURES |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported | | Economy Mode Operation | Optional economy mode enables high efficiency bypass operation with a maximum output voltage variation of +/-10%. Double conversion mode is automatically restored as mains voltage varies beyond +/-10% with less than 1 millisecond transfer time between modes. | | High Availability UPS Features | Automatic inverter bypass; Hot swappable batteries; Hot swappable UPS power module; Manual bypass switch | | Green Energy-Saving Features | High efficiency economy mode operation; Support for daily startup and shutoff; Schedulable daily hours of economy mode operation |
|
CERTIFICATIONS |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); CE; Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances) | | UPS Certification Details | IEC 61000-4-5 1995 B Surge Immunity |
|
WARRANTY |
| Product Warranty Period (Worldwide) | 2-year limited warranty | | Connected Equipment Insurance (U.S., Canada & Puerto Rico) | $250,000 Ultimate Lifetime Insurance |
|
