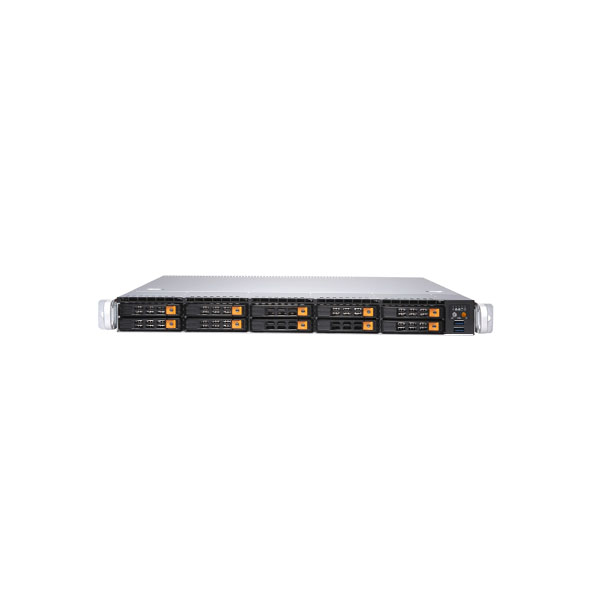

ULYS 1.10SW Storage Server

ULYS 1.10SW Storage Server Price in Dubai

Storage server with 2nd Gen Intel® Xeon® Scalable Processors

ULYS 1.10SW Applications



ULYS 1.10 is a 1U storage server that can meet all your storage needs.

DESIGN PRINCIPLES
• I/O options for accelerated computing.
• Increased efficiency, accelerated performance.
• High-end storage server.
• Tool-less and lockable 2.5’’ drive trays.

KEY BENEFITS
• Easy maintenance
• Compact and powerful
• Simple to specify

KEY FEATURES
Unique solution which supports :
• 2nd Gen Intel® Xeon® Scalable Processors
• Single Socket P (LGA3647)
• Dual LAN Ethernet
• Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MHz,
in 6 DIMM slots
• Aspeed® AST2500 remote management controller

2CRSi
Specifications are subject to change. Please verify with sales representative for latest revision.

OVERVIEW





System

Model ULYS 1.10SW
Form Factor 1U
Dimension 597 x 437 x 43
23.5’’ x 17.2’’ x 1.7’’ (D x W x H)
Sled –
Weight 15 kg
33 lbs

Storage

Front type 10x hot-swap 2.5’’ SATA/SAS/(NVMe
optional)
Rear type –

Motherboard

CPU 2nd Gen Intel® Xeon® Scalable Processors
and Intel® Xeon® Scalable Processors
Chipset Intel® C622
Expansions
slots
2x PCIe 3.0 x16 (FHFL)
1x PCIe 3.0 x8 (LP)
M.2 connector 1x M.2 PCIe 3.0 x4 and SATA
Network Up to 2x 10GbE base-T

Processors

Socket type Single Socket P (LGA3647)
Supported CPU 2nd Gen Intel® Xeon® Scalable Processors
and Intel® Xeon® Scalable Processors
TDP Up to 205W

Memory

Quantity 6x DIMM slots
Capacity Up to 1.5TB 3DS ECC DDR4-2933MHz
RDIMM/LRDIMM
Speed 2933/2666/2400/2133MHz ECC DDR4
RDIMM/LRDIMM
Channels 6x channels per CPU

Server management

BMC IPMI 2.0 with KVM support
Chipset Aspeed® AST2500
TPM TPM Header for SPI interface

Front I/O

Button 1x Power
1x System reset
LED
2x Network activity
1x Power status
1x HDD activity
1x System Overheat LED / Fan fail LED /
UID LED
Port 2x USB

Back I/O

Button –
LED 1x UID
Port
4x USB
2x RJ45 Ethernet
1x COM
1x VGA
1x IPMI

Internal connector

Port

System Cooling

Fans 4x fans (2 more can be added in option)

Power Input

Type 700W/750W Redundant Power Supplies
80+ Platinum certified
Input Range
100 – 140Vac / 8 – 6A / 50 – 60Hz
200 – 240Vac / 4.5 – 3.8A / 50 – 60Hz
200 – 240Vdc / 4.5 – 3.8A (CCC Only)
DC Output 700W: +12V Max: 58A / +5V sb Max: 3A
750W: +12V Max: 62A / +5V sb Max: 3A

Operating Environnement

RoHS

RoHS compliant
Temperature Operating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 60°C
Humidity
Operating humidity : 8-90% (non-condensing)
Non-operating humidity : 5-95%
(non-condensing)
