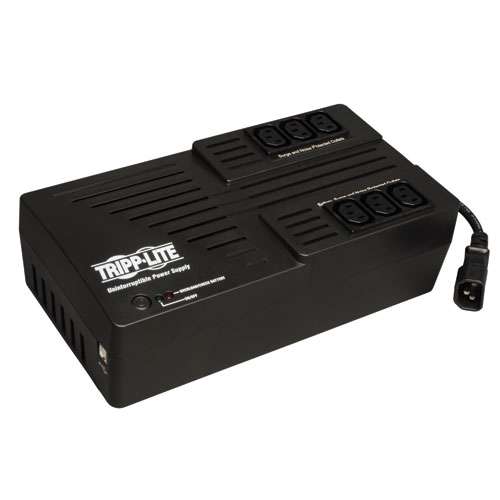

AVRX550U
We give the best AVRX550U price in Dubai. Also we are the top tripp lite dealers and distributors in Dubai. More than this we are the top tripp lite Ups system partners in Dubai. In addition to this we are the top AVRX550U suppliers in Dubai. Also we are the tripp lite product partners in Dubai. Beyond this we give grate tripp-lite support services in Dubai.
- AVRX550U ultra-compact 230V line interactive UPS offers complete AC power protection from blackouts, brownouts and transient surges
- 550VA / 300 watt UPS output capacity
- Uninterruptible Power Supply / UPS operation maintains battery-derived AC output during blackouts to prevent data loss and system downtime for connected equipment
- Built-in USB port enables data-saving unattended shutdown when used with Tripp Lite’s PowerAlert software, available via FREE download from www.tripplite.com
- HID-compliant USB port also enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Automatic Voltage Regulation / AVR corrects extended brownouts and overvoltages from 159 to 282V, without using battery power
- 5.1 minutes runtime at 50% load(150 watts)
- Up to 10 minutes runtime for a small desktop computer system consuming 80 watts continuous
- 6 total C13 outlets; Includes two 2m C13 to C14 power cables
- 3 UPS battery backup outlets, plus 3 additional surge-only outlets
- C14 inlet supports a variety of site specific input cordsets
- Network grade AC surge and lightning protection is available from all outlets; Built-in data line surge suppression protects a single dialup or DSL line
- Supports Tripp Lite’s Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot of connected equipment, ideal for unattended kiosk applications
- Built-in grounding lug
- Hot swappable user battery replacement supported via easy access battery access door
- Optional PDUBHV10 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
- Space saving, ultra-compact housing with support for wall-mount, desktop or floor placement.
OUTPUT |
| Output Volt Amp Capacity (VA) | 550 | | Output Watt Capacity (Watts) | 300 | | Nominal Output Voltage(s) Supported | 220V; 230V; 240V | | Frequency Compatibility | 50 / 60 Hz | | Output Voltage Regulation (Line Mode) | +8%, -21% | | Output Voltage Regulation (Battery Mode) | +/- 5% | | Output Receptacles | (6) C13 | | Included Output Power Cables | Includes 2 C13 to C14 output power cables | | UPS Output Receptacles (Surge Suppression Only) | 3 UPS outlets, 3 surge-only outlets | | Hot-Swap PDU options | PDUBHV10 (2U / 8 C13 outlets) | | Output AC Waveform (AC Mode) | Sine wave | | Output AC Waveform (Battery Mode) | PWM sine wave |
|
INPUT |
| Rated input current (Maximum Load) | 10A | | Nominal Input Voltage(s) Supported | 230V AC | | UPS Input Connection Type | C14 inlet | | UPS Input Connection Description | Attached 15cm line cord with C14 inlet. The C14 inlet accepts user-supplied AC power cord with country specific plug | | UPS Input Cord Length (ft.) | 0.5 | | UPS Input Cord Length (m) | 0.2 | | Input Phase | Single-Phase |
|
BATTERY |
| Half Load Runtime (min.) | 5.1 min. (150w) | | DC System Voltage (VDC) | 12 | | Battery Access | Provides the battery access door | | Battery Replacement Description | Hot-swappable, user replaceable batteries | | Expandable Runtime | No |
|
VOLTAGE REGULATION |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 159 to 282VAC | | Overvoltage Correction | Input voltages between 245 and 282 are reduced by 12% | | Undervoltage Correction | Input voltages between 159 and 205 are boosted by 14% |
|
USER INTERFACE, ALERTS & CONTROLS |
| Switches | Combination switch controls on/off power status and self-test operation | | Audible Alarm | Audible alarm indicates power-failure and overload status | | LED Indicators | 2 LEDs indicate power status and overload/check battery status |
|
SURGE / NOISE SUPPRESSION |
| UPS AC Suppression Joule Rating | 320 | | UPS AC Suppression Response Time | Instantaneous | | UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out) | | EMI / RFI AC Noise Suppression | Yes |
|
PHYSICAL |
| Installation Form Factors Supported with Included Accessories | Tower; Ultra-compact desktop | | Primary Form Factor | Desktop | | UPS Power Module Dimensions (hwd, cm) | 8.9 x 27.9 x 14.6 | | UPS Power Module Weight (kg) | 3.9 | | UPS Shipping Dimensions (hwd / cm) | 14 x 35.1 x 22.9 | | Shipping Weight (kg) | 4.6 | | UPS Housing Material | ABS |
|
ENVIRONMENTAL |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius | | Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius | | Relative Humidity | 0 to 95%, non-condensing | | AC Mode BTU / Hr. (Full Load) | 54 | | AC Mode Efficiency Rating (100% Load) | 95% |
|
COMMUNICATIONS |
| Communications Interface | USB (HID enabled) | | PowerAlert Software | Free download from www.tripplite.com | | Communications Cable | USB interface cable included | | WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications | | Network UPS Tools Compatibility | NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite |
|
LINE / BATTERY TRANSFER |
| Transfer Time | 4 milliseconds | | Low Voltage Transfer to Battery Power (Setpoint) | 159 | | High Voltage Transfer to Battery Power (Setpoint) | 282 |
|
SPECIAL FEATURES |
| Grounding Lug | Included | | Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported | | High Availability UPS Features | Hot swappable batteries | | Green Energy-Saving Features | Greater than 95% efficiency – GREEN UPS |
|
CERTIFICATIONS |
| UPS Certifications | CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia); Meets FCC Part 15 Category B (EMI); ROHS (Restriction of Hazardous Substances) | | UPS Certification Details | EN62040 |
|
WARRANTY |
| Product Warranty Period (International) | 2-year limited warranty |
|
