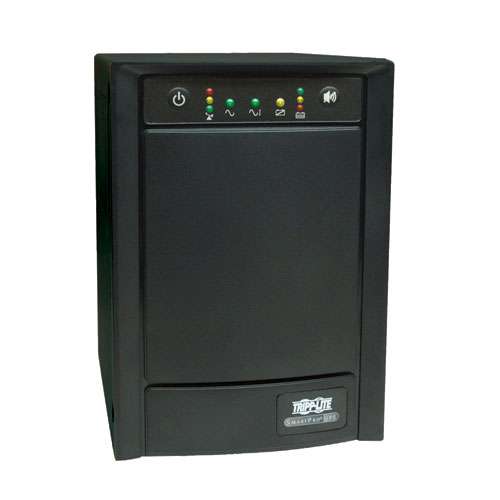

SMX1050SLT

SMX1050SLT

In stock

Categories: ,

Description

SMX1050SLT

We give the best SMX1050SLT price in Dubai. In addition to this we are the top SMX1050SLT suppliers in Dubai. Also provides the grate tripp lite UPS system support services in Dubai. More than this we are the best Tripp lite Ups system partners in Dubai. Beyond this we are the best tripp lite product re-sellers in Dubai.

Features

  • SMX1050SLT line-interactive UPS offers battery-derived sine wave AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression
  • 1050VA/650W power handling capability with full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic devices
  • Large internal batteries offer runtimes of 20 min. at half load(525VA/325W) and 7 min. at full load(1050VA/650W)
  • Intelligent battery management system extends battery life
  • Automatic voltage regulation(AVR) circuits maintain user-selectable 220V, 230V or 240V nominal output over an input voltage range of 174-266V(220V), 182-278V(230V) or 190-290V(240V)
  • 8 x C13 output receptacles
  • IEC320-C14 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles
  • PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, email notification, event logging and running of user-defined script commands
  • Offers simultaneous monitoring by up to 3 directly connected devices through included USB, DB9 and SNMP* interfaces(*requires optional SNMPWEBCARD), or the monitoring of any number of additional UPS systems over IP with included PowerAlert monitoring software
  • Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity
  • HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X.
  • Supports Tripp Lite’s WatchDog software application to restore unresponsive programs by systematically restarting applications, operating systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again(requires optional WATCHDOGSW)
  • 9 LEDs provide continuous status information of UPS operating parameters and site power quality
  • Hot-swappable batteries allow on-site battery replacement without powering off connected equipment
  • Optional PDUBHV10 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
  • Single line tel/DSL and network Ethernet line surge suppression
  • CE/IEC 62040, GOST, SASO.

Specifications

OUTPUT
Output Volt Amp Capacity (VA)1050
Output kVA Capacity (kVA)1
Output Watt Capacity (Watts)650
Power Factor0.6
Nominal Output Voltage(s) Supported220V; 230V; 240V
Nominal Voltage Details230V default (voltage selection via back panel switches)
Frequency Compatibility50 / 60 Hz
Output Voltage Regulation (Line Mode)-9%, +5%
Output Voltage Regulation (Battery Mode)+/- 5%
Output Receptacles(8) C13
Included Output Power CablesIncludes 2 C13 to C14 output power cables
Hot-Swap PDU optionsPDUBHV10 (2U / 8 C13 outlets)
Output AC Waveform (AC Mode)Sine wave
Output AC Waveform (Battery Mode)Pure Sine wave
INPUT
Rated input current (Maximum Load)2.8A (230V), 3.0A (220V), 2.7A (240V)
Nominal Input Voltage(s) Supported220V AC; 230V AC; 240V AC
UPS Input Connection TypeC14 inlet
UPS Input Connection DescriptionIEC320-C14 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles
Input PhaseSingle-Phase
BATTERY
Full Load Runtime (min.)7 min. (650w)
Half Load Runtime (min.)20 min. (325w)
DC System Voltage (VDC)24
Battery Recharge Rate (Included Batteries)Less than 8 hours from 10% to 90% (typical, full load discharge)
Internal UPS Replacement Battery CartridgeRBC24-SLT
Battery AccessProvides the battery access door
Battery Replacement DescriptionHot-swappable, user replaceable batteries
Expandable RuntimeNo
VOLTAGE REGULATION
Voltage Regulation DescriptionAutomatic voltage regulation (AVR) maintains line power operation with an input voltage range of 182 to 278 (230v), 190 to 290 (240v), 174 to 266 (220v)
Overvoltage CorrectionVoltage reduction of 12% applies when input is 244 to 278 (230v), 254 to 290 (240v), 232 to 266 (220v)
Undervoltage CorrectionVoltage boost of 14% applies when input is 182 to 206 (230v), 190 to 216 (240v), 174 to 198 (220)
USER INTERFACE, ALERTS & CONTROLS
Switches2 Switches control off/on power status and alarm-cancel/self-test operation; rear panel protected switches support nominal voltage selection
Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch
Audible AlarmAudible alarm indicates power failure and overload conditions
LED Indicators9 LEDs indicate line power, battery power, AVR, overload and replace battery status – with a 3-LED level meter for load and battery charge level
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating350
UPS AC Suppression Response TimeInstantaneous
UPS Dataline Suppression1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
EMI / RFI AC Noise SuppressionYes
PHYSICAL
Primary Form FactorTower
UPS Power Module Dimensions (hwd, cm)26 x 17.1 x 33.7
UPS Power Module Weight (kg)16.3
UPS Shipping Dimensions (hwd / cm)35.6 x 24.8 x 47
Shipping Weight (kg)17.5
Cooling MethodFan
UPS Housing MaterialSteel
ENVIRONMENTAL
Operating Temperature Range+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load)141.1
Battery Mode BTU / Hr. (Full Load)359.8
AC Mode Efficiency Rating (100% Load)94%
Audible NoiseAudible Noise < 50 dBA at Front Side 1 Meter
COMMUNICATIONS
Communications InterfaceUSB; DB9 Serial; Slot for SNMP/Web interface
Network Monitoring Port DescriptionSupports detailed monitoring of UPS and site power conditions
PowerAlert SoftwareIncluded
Communications CableUSB and DB9 cabling included
WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer Time4-8 milliseconds
Low Voltage Transfer to Battery Power (Setpoint)174V (220V), 182V (230V) or 190V (240V)
High Voltage Transfer to Battery Power (Setpoint)266V (220V), 278V (230V) or 290V (240V)
SPECIAL FEATURES
Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported
High Availability UPS FeaturesHot swappable batteries
CERTIFICATIONS
UPS CertificationsCE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia); Meets FCC Part 15 Category B (EMI)
UPS Certification DetailsCE / IEC 62040
WARRANTY
Product Warranty Period (International)2-year limited warranty
Product Warranty Period (Mexico)2-year limited warranty
Product Warranty Period (Puerto Rico)2-year limited warranty
