OUTPUT |
| Output Volt Amp Capacity (VA) | 750 | | Output Watt Capacity (Watts) | 500 | | Power Factor | 0.7 | | Nominal Output Voltage(s) Supported | 220V; 230V; 240V | | Nominal Voltage Details | 230V default (voltage selection via back panel switches) | | Frequency Compatibility | 50 / 60 Hz | | Output Voltage Regulation (Line Mode) | -11%, +6% | | Output Voltage Regulation (Battery Mode) | +/- 5% | | Output Receptacles | (6) C13 | | Included Output Power Cables | Includes 2 C13 to C14 output power cables | | Output AC Waveform (AC Mode) | Sine wave | | Output AC Waveform (Battery Mode) | Pure Sine wave |
|
INPUT |
| Rated input current (Maximum Load) | 3.6A (220V), 3.5A (230V), 3.4A (240V) | | Nominal Input Voltage(s) Supported | 220V AC; 230V AC; 240V AC | | UPS Input Connection Type | C14 inlet | | UPS Input Connection Description | IEC320-C14 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles | | Input Phase | Single-Phase |
|
BATTERY |
| Full Load Runtime (min.) | 5 min. (500w) | | Half Load Runtime (min.) | 15 min. (250w) | | DC System Voltage (VDC) | 24 | | Battery Recharge Rate (Included Batteries) | Less than 4 hours to 90% (typical, full load discharge) | | Internal UPS Replacement Battery Cartridge | RBC24-SLT | | Battery Access | Provides the battery access door | | Battery Replacement Description | Hot-swappable, user replaceable batteries | | Expandable Runtime | No |
|
VOLTAGE REGULATION |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 151 to 290V | | Overvoltage Correction | Voltage reduction of 12% applies when input is 232-266 (220V), 244-278 (230V), 254-290 (240V) | | Undervoltage Correction | Voltage boost of 15% applies when input is 175-198 (220V), 182-206 (230V), 190-216 (240V) | | Severe Undervoltage Correction | Voltage boost of 30% applies when input is 151-174 (220V), 158-181 (230V), 166-190 (240V) |
|
USER INTERFACE, ALERTS & CONTROLS |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation; rear panel protected switches support nominal voltage selection | | Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch | | Audible Alarm | Audible alarm indicates power failure and overload conditions | | LED Indicators | 9 LEDs indicate line power, battery power, AVR, overload and replace battery status – with a 3-LED level meter for load and battery charge level |
|
SURGE / NOISE SUPPRESSION |
| UPS AC Suppression Joule Rating | 504 | | UPS AC Suppression Response Time | Instantaneous | | UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet | | EMI / RFI AC Noise Suppression | Yes |
|
PHYSICAL |

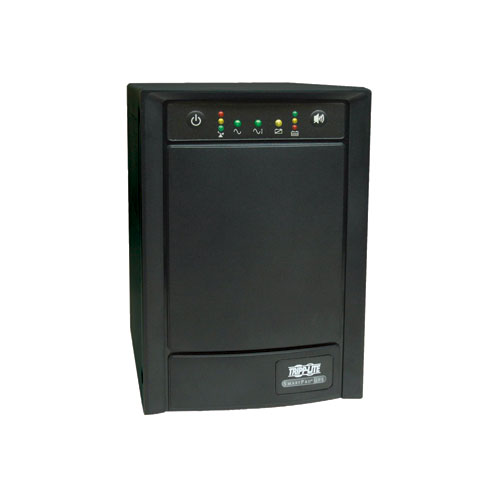

| Primary Form Factor | Tower | | UPS Power Module Dimensions (hwd, cm) | 26 x 17.1 x 33.7 | | UPS Power Module Weight (kg) | 15.5 | | UPS Shipping Dimensions (hwd / cm) | 35.6 x 24.8 x 47 | | Shipping Weight (kg) | 17.5 | | Cooling Method | Fan | | UPS Housing Material | Steel |
|
ENVIRONMENTAL |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius | | Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius | | Relative Humidity | 0 to 95%, non-condensing | | AC Mode BTU / Hr. (Full Load) | 73 | | Battery Mode BTU / Hr. (Full Load) | 349 | | AC Mode Efficiency Rating (100% Load) | 96% | | Audible Noise | Audible Noise < 50 dBA at Front Side 1 Meter |
|
COMMUNICATIONS |
| Communications Interface | USB (HID enabled); DB9 Serial; Slot for SNMP/Web interface | | Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions | | PowerAlert Software | Included | | Communications Cable | USB and DB9 cabling included | | WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
|
LINE / BATTERY TRANSFER |
| Transfer Time | 4-8 milliseconds | | Low Voltage Transfer to Battery Power (Setpoint) | 151 (220V), 158 (230V), 166 (240V) | | High Voltage Transfer to Battery Power (Setpoint) | 266V (220V), 278V (230V) or 290V (240V) |
|
SPECIAL FEATURES |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported | | High Availability UPS Features | Hot swappable batteries | | Green Energy-Saving Features | Provides greater than 95% efficiency – GREEN UPS |
|
CERTIFICATIONS |
| UPS Certifications | CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia) | | UPS Certification Details | EN62040-1, EN62040-2 |
|
WARRANTY |
| Product Warranty Period (International) | 2-year limited warranty | | Product Warranty Period (Mexico) | 2-year limited warranty | | Product Warranty Period (Puerto Rico) | 2-year limited warranty |
|
