Description

We give the best OMNIVSINT1000 price in Dubai. Also we are the top tripp lite Ups system distributors in Dubai. In addition to this we are the Tripp-lite product partners in Dubai. Beyond this we give great tripp-lite Ups system support services in Dubai. More than this we provide Tripp-lite product re-sellers in Dubai. Beyond this we are the best Tripp lite Ups system product dealers in Dubai.

Features

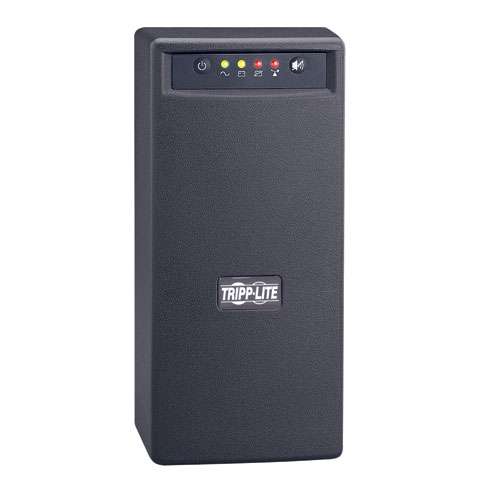

  • OMNIVSINT1000 Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
  • Supports entry level PCs up to 60 minutes during blackouts to enable shutdown without data loss
  • Regulates brownouts as low as 159 volts back to usable levels without using battery power
  • 6 IEC320 C13 outlets with complete AC surge suppression
  • C14 accepts user-supplied AC power cord with country-specific plug
  • USB port and cable enables unattended shutdown in the case of extended power failure
  • PowerAlert software available via free download from www.tripplite.com
  • Single line phone surge suppression protects standard dialup/DSL phone connection
  • Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
  • 1000VA power handling ability supports a variety of sensitive electronic equipment
  • 5 minutes full load runtime (1000VA), 12 minutes half load runtime (500VA)
  • Supports battery replacement via built-in access panel
  • Attractive full color retail packaging.

Specifications

OUTPUT
Output Volt Amp Capacity (VA)1000
Output Watt Capacity (Watts)500
Nominal Output Voltage(s) Supported220V; 230V; 240V
Nominal Voltage Details230V inverter nominal voltage output
Frequency Compatibility50 / 60 Hz
Output Voltage Regulation (Battery Mode)+/- 5%
Output Receptacles(6) C13
Included Output Power CablesIncludes 2 C13 to C14 output power cables
Output AC Waveform (AC Mode)Sine wave
Output AC Waveform (Battery Mode)PWM sine wave
INPUT
Rated input current (Maximum Load)2.4A
Nominal Input Voltage(s) Supported230V AC
UPS Input Connection TypeC14 inlet
UPS Input Connection DescriptionAttached 15cm line cord with C14 inlet. The C14 inlet accepts a user-supplied AC power cord with country specific plug.
UPS Input Cord Length (ft.)0.5
UPS Input Cord Length (m)0.2
Input PhaseSingle-Phase
BATTERY
Full Load Runtime (min.)5 min. (500w)
Half Load Runtime (min.)12 min. (250w)
DC System Voltage (VDC)12
Battery Recharge Rate (Included Batteries)Less than 9 hours from 10% to 90%
Internal UPS Replacement Battery CartridgeRBC51
Battery AccessProvides the access door for battery
Battery Replacement DescriptionHot-swappable, user replaceable batteries
Expandable RuntimeNo
VOLTAGE REGULATION
Voltage Regulation DescriptionAutomatic voltage regulation (AVR) maintains line power operation with input voltage as low as 159
Undervoltage CorrectionInput voltages between 159 and 199 are boosted by 14%
USER INTERFACE, ALERTS & CONTROLS
Switches2 Switches control off/on power status and alarm-cancel/self-test operation
Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch. Also once silenced, alarm will re-sound to indicate low-battery status.
Audible AlarmAudible alarm indicates power-failure and low-battery conditions
LED Indicators4 LEDs indicate line power, battery power, overload and battery low/replace status
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating508
UPS AC Suppression Response TimeInstantaneous
UPS Dataline Suppression1 line TEL/DSL (1 in / 1 out)
EMI / RFI AC Noise SuppressionYes
PHYSICAL
Installation Form Factors Supported with Included AccessoriesTower
Installation Form Factors Supported with Optional AccessoriesWallmount(UPSWM – tower mounting kit)
Primary Form FactorTower
UPS Power Module Dimensions (hwd, cm)27.3 x 13.3 x 19
UPS Power Module Weight (kg)7.6
UPS Shipping Dimensions (hwd / cm)35.6 x 21.6 x 27.9
Shipping Weight (kg)8.9
UPS Housing MaterialPVC
ENVIRONMENTAL
Operating Temperature Range+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load)147.8
Battery Mode BTU / Hr. (Full Load)254
AC Mode Efficiency Rating (100% Load)92%
COMMUNICATIONS
Communications InterfaceUSB
PowerAlert SoftwareFree download from www.tripplite.com
Communications CableUSB interface cable included
WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer Time4 milliseconds
Low Voltage Transfer to Battery Power (Setpoint)159
High Voltage Transfer to Battery Power (Setpoint)Yes
SPECIAL FEATURES
Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported
High Availability UPS FeaturesHot swappable batteries
CERTIFICATIONS
UPS CertificationsCE; Provides Tested to GOST (Russia); Filterd to SASO (Saudi Arabia); Tested to IRAM (Argentina); Meets FCC Part 15 Category B (EMI)
UPS Certification DetailsCE IEC62040
WARRANTY
Product Warranty Period (International)2-year limited warranty
Product Warranty Period (Mexico)2-year limited warranty
Product Warranty Period (Puerto Rico)2-year limited warranty
