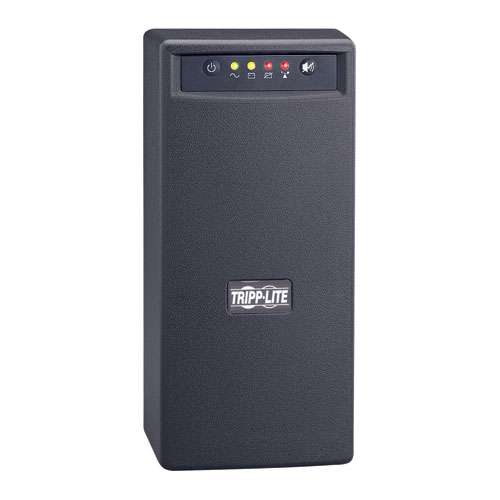

OMNIVSINT800

In stock

AED770.00

Description

We give the best OMNIVSINT800 price in Dubai. Also we are the top Tripp lite Ups system dealers in Dubai. More than this we are the top tripp lite Ups system partners in Dubai. In addition to this we are the best OMNIVSINT800 product suppliers in Dubai. In addition to this we are the top tripp lite distributors in Dubai.

Features

  • We give OMNIVSINT800 Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
  • In addition to this give supports entry level PCs up to 40 minutes during blackouts to enable shutdown without data loss
  • More than this regulates the brownouts as low as 159 volts back to usable levels without using battery power
  • Beyond this provides the 4 IEC320 C13 outlets with complete AC surge suppression
  • Also give C14 inlet accepts user-supplied AC power cord with country specific plug
  • More than this provides the USB port and cable enables unattended shutdown in the case of extended power failure
  • PowerAlert software available via free download from www.tripplite.com
  • Single line phone suppression protects standard dialup/DSL phone connection
  • Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
  • 800VA power handling ability supports a variety of sensitive electronic equipment
  • 3.5 minutes full load runtime(800VA), 11.5 minutes half load runtime(400VA)
  • Supports battery replacement via built-in access panel
  • Optional PDUBHV10 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
  • Attractive full color retail packaging.

Specifications

OUTPUT
Output Volt Amp Capacity (VA)800
Output Watt Capacity (Watts)475
Nominal Output Voltage(s) Supported220V; 230V; 240V
Nominal Voltage Details230V inverter nominal voltage output
Frequency Compatibility50 / 60 Hz
Output Voltage Regulation (Battery Mode)+/- 5%
Output Receptacles(4) C13
Included Output Power CablesIncludes 2 C13 to C14 output power cables
Hot-Swap PDU optionsPDUBHV10 (2U / 8 C13 outlets)
Output AC Waveform (AC Mode)Sine wave
Output AC Waveform (Battery Mode)PWM sine wave
INPUT
Rated input current (Maximum Load)2.4A
Nominal Input Voltage(s) Supported230V AC
UPS Input Connection TypeC14 inlet
UPS Input Connection DescriptionAttached 15cm line cord with C14 inlet. The C14 accepts a user-supplied AC power cord with country-specific plug.
UPS Input Cord Length (ft.)0.5
UPS Input Cord Length (m)0.2
Input PhaseSingle-Phase
BATTERY
Full Load Runtime (min.)3.5 min. (475w)
Half Load Runtime (min.)11.5 min. (240w)
DC System Voltage (VDC)12
Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90%
Internal UPS Replacement Battery CartridgeRBC51
Battery AccessGives the best Battery access door
Battery Replacement DescriptionHot-swappable, user replaceable batteries
Expandable RuntimeNo
VOLTAGE REGULATION
Voltage Regulation DescriptionAutomatic voltage regulation (AVR) maintains line power operation with input voltage as low as 159
Undervoltage CorrectionInput voltages between 159 and 199 are boosted by 14%
USER INTERFACE, ALERTS & CONTROLS
Switches2 Switches control off/on power status and alarm-cancel/self-test operation
Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Audible AlarmAudible alarm indicates power-failure and low-battery conditions
LED Indicators4 LEDs indicate line power, battery power, overload and battery low/replace status
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating340
UPS AC Suppression Response TimeInstantaneous
UPS Dataline Suppression1 line TEL/DSL (1 in / 1 out)
EMI / RFI AC Noise SuppressionYes
PHYSICAL
Installation Form Factors Supported with Included AccessoriesTower
Installation Form Factors Supported with Optional AccessoriesWallmount(UPSWM – tower mounting kit)
Primary Form FactorTower
UPS Power Module Dimensions (hwd, cm)27.3 x 13.3 x 19
UPS Power Module Weight (kg)8.9
UPS Shipping Dimensions (hwd / cm)35.6 x 21.6 x 27.9
Shipping Weight (kg)10.2
UPS Housing MaterialPVC
ENVIRONMENTAL
Operating Temperature Range+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load)49.9
Battery Mode BTU / Hr. (Full Load)455.5
AC Mode Efficiency Rating (100% Load)97%
COMMUNICATIONS
Communications InterfaceUSB
PowerAlert SoftwareFree download from www.tripplite.com
Communications CableUSB interface cable included
WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer Time2-4 milliseconds
Low Voltage Transfer to Battery Power (Setpoint)159
SPECIAL FEATURES
Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported
High Availability UPS FeaturesHot swappable batteries
Green Energy-Saving FeaturesIn addition to this we give greater than 95% efficiency – GREEN UPS
CERTIFICATIONS
UPS CertificationsTested to UL1778 (USA); CE; Provides the Tested to GOST (Russia); Tested to SASO (Saudi Arabia); Tested to IRAM (Argentina)
WARRANTY
Product Warranty Period (International)2-year limited warranty
Product Warranty Period (Mexico)2-year limited warranty
Product Warranty Period (Puerto Rico)2-year limited warranty
