OUTPUT |
| Output Volt Amp Capacity (VA) | 1500 | | Output kVA Capacity (kVA) | 1.5 | | Output Watt Capacity (Watts) | 900 | | Nominal Output Voltage(s) Supported | 220V; 230V; 240V | | Nominal Voltage Details | 230v nominal inverter output voltage | | Frequency Compatibility | 50 / 60 Hz | | Output Voltage Regulation (Battery Mode) | +/- 5% | | Output Receptacles | (8) C13 | | UPS Output Receptacles (Surge Suppression Only) | 6 UPS outlets, 2 surge-only outlets | | Hot-Swap PDU options | PDUBHV10 (2U / 8 C13 outlets) | | Output AC Waveform (AC Mode) | Sine wave | | Output AC Waveform (Battery Mode) | PWM sine wave |
|
INPUT |
| Rated input current (Maximum Load) | 9A | | Nominal Input Voltage(s) Supported | 230V AC | | UPS Input Connection Type | C14 inlet | | Input Circuit Breakers | 10A fuse | | UPS Input Cord Length (ft.) | 6 | | UPS Input Cord Length (m) | 1.8 | | Input Phase | Single-Phase |
|
BATTERY |
| Half Load Runtime (min.) | 10 minutes (450 watts) | | DC System Voltage (VDC) | 24 | | Battery Recharge Rate (Included Batteries) | Less than 8 hours from 10% to 90% | | Internal UPS Replacement Battery Cartridge | RBC51(requires 2) | | Expandable Runtime | No |
|
VOLTAGE REGULATION |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with a correction range from 170V to 280V | | Overvoltage Correction | Input voltages between 247 and 280 are reduced by 15% | | Undervoltage Correction | Input voltages between 170 and 207 are boosted by 18% |
|
USER INTERFACE, ALERTS & CONTROLS |

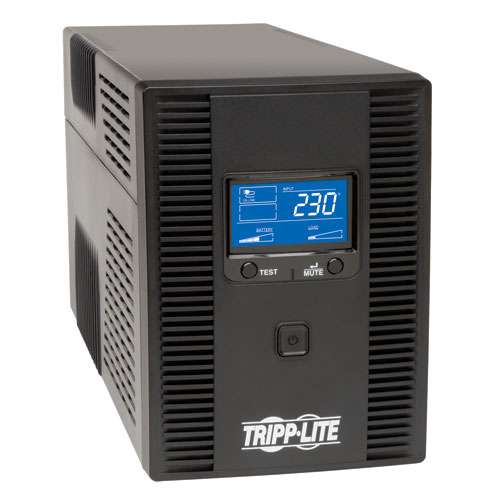

| Front Panel LCD Display | LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Output load in watts, Battery voltage and Estimated runtime in minutes | | Switches | Power switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test | | Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch | | Audible Alarm | Audible alarm indicates power-failure and low-battery conditions |
|
SURGE / NOISE SUPPRESSION |
| UPS AC Suppression Joule Rating | 455 | | UPS AC Suppression Response Time | Instantaneous | | UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet | | EMI / RFI AC Noise Suppression | Yes |
|
PHYSICAL |
| Installation Form Factors Supported with Included Accessories | Tower | | Primary Form Factor | Tower | | UPS Power Module Dimensions (hwd, cm) | 20.3 x 14.6 x 39.4 | | UPS Power Module Weight (kg) | 11.2 | | UPS Shipping Dimensions (hwd / cm) | 22.9 x 27.9 x 49 | | Shipping Weight (kg) | 12.3 | | Cooling Method | Fan |
|
ENVIRONMENTAL |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius | | Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius | | Relative Humidity | 0 to 95%, non-condensing | | AC Mode Efficiency Rating (100% Load) | 95% |
|
COMMUNICATIONS |
| Communications Interface | USB (HID enabled) | | Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions | | PowerAlert Software | Free download from www.tripplite.com | | Communications Cable | USB cabling included | | WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
|
LINE / BATTERY TRANSFER |
| Transfer Time | 6 milliseconds | | Low Voltage Transfer to Battery Power (Setpoint) | 170V (factory setting), 175V (medium setting), 180V (narrow setting) | | High Voltage Transfer to Battery Power (Setpoint) | 280V (factory setting), 275V (medium setting), 270V (narrow setting) |
|
SPECIAL FEATURES |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported | | High Availability UPS Features | Hot swappable batteries | | Green Energy-Saving Features | Greater than 95% efficiency – GREEN UPS |
|
CERTIFICATIONS |
| UPS Certifications | CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia) | | UPS Certification Details | EN62040-1, EN62040-2 Class A |
|
WARRANTY |
| Product Warranty Period (International) | 2-year limited warranty |
|
