Sophos SG230 — Next-Generation Firewall
The Sophos SG 230 is a 1U rackmount security appliance engineered to deliver high performance, flexible expansion, and all-in-one protection for growing businesses and mid-sized deployments. Powered by multi-core Intel hardware and equipped with 8 GB of RAM and a fast 120 GB SSD, the SG 230 easily handles heavy traffic inspection and concurrent session processing.
Architecture & Expansion

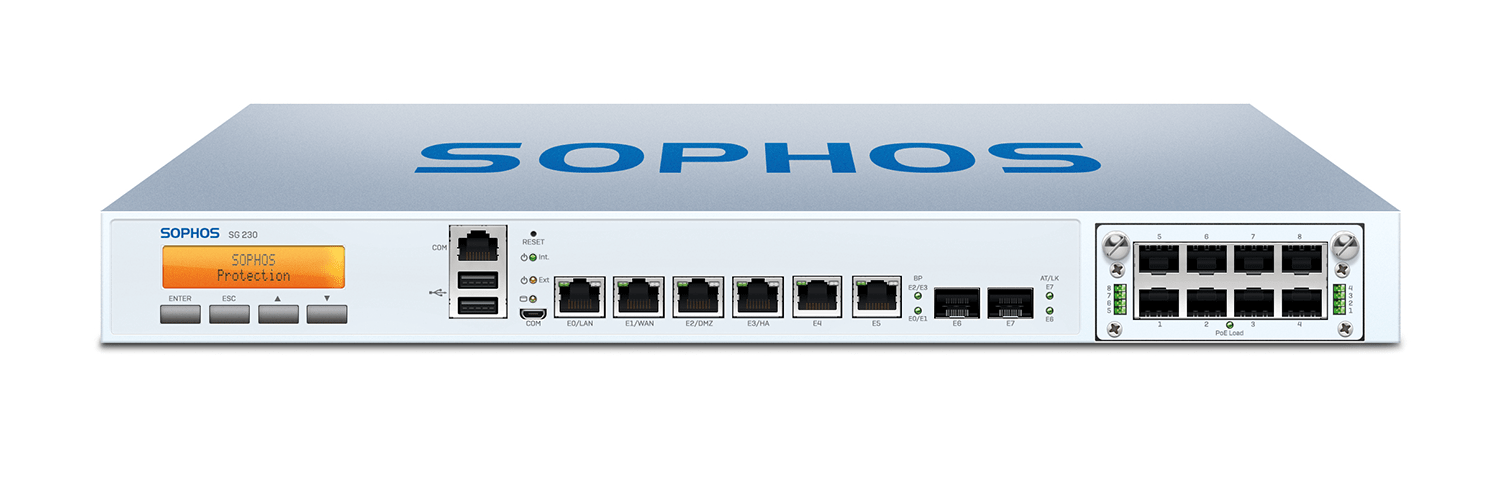

The front panel features an interactive LCD module, two USB 3.0 ports, a console port, and an open FleXi Port slot. Fixed connectivity includes 6 Gigabit Ethernet copper ports on the front panel, while the open expansion slot allows organizations to customize interface density with 1G copper, 1G SFP fiber, or 10G SFP+ uplinks.
Unified Protection & Scalability
Whether deployed as a dedicated firewall, intrusion prevention system (IPS), or full UTM gateway, the SG 230 adapts through software subscriptions such as FullGuard or BasicGuard. Built-in clustering capabilities enable seamless horizontal scaling, allowing up to 10 units to act as a unified, highly available network defense barrier.
Selection Guide
For Standard Network Connectivity
Utilize the 6 built-in GbE copper ports for primary WAN, LAN, DMZ, and management connections.
For Fiber or High-Speed Uplinks
If connecting to fiber backbones or enterprise switches, purchase a compatible FleXi Port expansion module (e.g., 8-port GbE SFP or 2-port 10 GbE SFP+) and corresponding Sophos SFP/SFP+ transceivers.
For High Port Density LAN
Choose the 8-port GbE copper FleXi Port module to double the appliance’s total copper port count to 14 ports.
Always Verify
Check subscription model compatibility (BasicGuard, FullGuard, TotalProtect) and confirm hardware revisions before selecting optional modules and transceivers.
Installation Notes
Mount the SG 230 into a standard 19-inch server rack using the included 1U rackmount ears. Connect network interfaces to the fixed GbE copper ports or installed FleXi Port modules. FleXi Port expansion modules should be securely installed into the expansion slot prior to powering on the appliance. Plug the internal autoranging power supply into an AC source (110–250V AC). Verification is simple: verify boot status via the front LCD display and access the web management portal via connected LAN ports.
Best Practices
- Mount in standard server racks with sufficient airflow cleared around front and rear vents.
- Use official Sophos FleXi Port expansion modules and tested SFP/SFP+ transceivers for optimal link stability.
- Configure link aggregation or clustering when pairing with core infrastructure switches.
- Schedule regular local SSD log archives or integrate with centralized management for long-term reporting retention.
- Connect the appliance to an Uninterruptible Power Supply (UPS) to protect the internal SSD from unexpected power loss.
Benefits for IT Teams
- Streamlined Rack Management: 1U standardized form factor with front-facing status LCD for fast maintenance.
- Modular Upgrade Path: Expand connectivity via FleXi Port modules without replacing core hardware.
- Reduced Overhead: Integrated 120 GB SSD provides local quarantine and logging directly on the box.
- High Network Availability: Dynamic clustering capability protects against single points of failure.
- Predictable Security Subscriptions: Simple licensing models consolidate multiple security features into single packages.
Main Product Capabilities
1. High-Performance Processing
Powered by multi-core Intel hardware and an integrated 120 GB SSD for fast logging and local reporting. Delivers up to 13 Gbps firewall throughput and handles up to 2.5 million concurrent connections.
2. Flexible Interfaces & FleXi Port Expansion
Features 6 built-in Gigabit Ethernet (RJ-45) copper ports, 2 front-facing USB 3.0 ports, 1 rear USB 2.0 port, and 1 FleXi Port expansion slot. Expand interface density with optional 8-port GbE copper, 8-port GbE SFP, or 2-port 10 GbE SFP+ modules.
3. Comprehensive UTM Security Options
Supports full Next-Gen Firewall (NGFW), Intrusion Prevention (IPS), Web & Email Protection, and Wireless Controller features through customizable security subscriptions (BasicGuard or FullGuard).
4. Advanced Management & Cluster Capabilities
Equipped with a front-panel multi-function LCD module for quick administrative checks. Supports dynamic clustering of up to 10 appliances without requiring external load balancers.
Why Use the Sophos SG 230 Appliance
- Proven Multi-Core Efficiency: Built on Intel processor architecture to handle multiple security engines simultaneously without creating network bottlenecks.
- Modular Infrastructure Growth: FleXi Port slot lets you add 1G/10G ports as bandwidth demands increase, protecting hardware investment.
- High-Density Clustering: Dynamically cluster up to 10 units for extended scalability and high availability without complex setups.
- Built-in Visibility: On-box SSD storage and front LCD display provide instant diagnostic data, logs, and real-time status.
- Enterprise Licensing Flexibility: Flexible security subscriptions (Essential, BasicGuard, FullGuard) let you tailor protection layers to specific corporate requirements.
Six Main Benefits
High Throughput Protection
Delivers 13 Gbps firewall throughput and 3 Gbps IPS performance.
Benefit: Maintains rapid network speeds while applying multi-layered security inspection.
Adaptable Interface Options
Includes 6 fixed GbE copper ports and 1 open FleXi Port slot.
Benefit: Easily adapt your firewall to mixed fiber, copper, or 10G environments.
High Availability Clustering
Supports dynamic clustering of up to 10 SG 230 appliances.
Benefit: Scale network capacity and ensure seamless failover without expensive external load balancers.
On-Appliance Reporting
Integrated 120 GB solid-state drive (SSD) for quarantine and log management.
Benefit: Generates immediate historical reports and logs locally without needing external log servers.
Operational Ease
Front-facing multi-function LCD status module and USB 3.0 ports.
Benefit: Allows fast status checks, basic administrative tasks, and quick system deployment.
Comprehensive Threat Prevention
Integrates stateful firewalling, IPsec/SSL VPN, IPS, web filtering, and app control.
Benefit: Consolidates standalone security systems into a unified 1U appliance.
Typical Use Cases
1. Mid-Sized Office Security Gateway
Deploy as the primary edge security appliance to protect corporate users across LAN and DMZ segments with 13 Gbps throughput.
2. High-Speed Branch Site Connectivity
Establish secure, high-speed IPsec or SSL VPN connections to link remote office locations directly to headquarters.
3. Fiber Uplink Integration
Add a 2-port 10 GbE SFP+ or 8-port GbE SFP FleXi Port module to connect directly to enterprise core switches via optical fiber.
4. High-Density Copper Switching
Equip the FleXi Port slot with an 8-port GbE copper module to increase physical LAN ports for segmented corporate departments.
5. Multi-Node Failover Cluster
Combine multiple SG 230 units into an active-active or active-passive cluster to ensure enterprise uptime and uninterrupted throughput.
6. Centralized UTM Deployment for MSPs
Deploy standardized 1U appliances across managed customer locations requiring consistent security policies and local SSD logging.
Who Should Buy Sophos SG 230?
- Mid-sized companies seeking a 13 Gbps high-performance rackmount UTM firewall.
- Organizations needing flexible fiber, copper, or 10G uplink options via modular expansion.
- IT departments and MSPs deploying site-to-site VPN gateways with built-in logging and IPS.
- Distributed enterprises that require scalable hardware clustering across branch office locations.
Frequently Asked Questions
What is the Sophos SG 230?
The Sophos SG 230 is a 1U rackmount security appliance offering next-generation firewall and UTM capabilities for mid-sized organizations.
What performance speeds does the SG 230 offer?
It features up to 13 Gbps firewall throughput, 3 Gbps IPS throughput, 2 Gbps VPN throughput, and supports up to 2.5 million concurrent connections.
How many fixed ports are on the Sophos SG 230?
The unit comes equipped with 6 fixed GbE copper ports (RJ-45) and 1 FleXi Port expansion slot.
What FleXi Port modules are supported on the SG 230?
Supported modules include 8-port GbE copper, 8-port GbE SFP, and 2-port 10 GbE SFP+ expansion modules.
Does the SG 230 include local storage for logs?
Yes, it includes an integrated 120 GB solid-state drive (SSD) for local quarantine storage and reporting.
Can I cluster multiple Sophos SG 230 appliances?
Yes, you can dynamically cluster up to 10 SG 230 appliances without needing external load balancing hardware.
