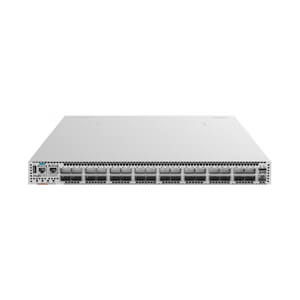

The Ruijie B6930-32CDQ2XS is a new generation high performance and high density 400GbE switch designed for cloud-scale datacenter and campus networks, which provide a powerful cache capacity and advanced scheduling mechanism driven large scale line-rate non-blocking network.The Ruijie B6930-32CDQ2XS based on Broadcom BCM56980 chipset deliver 32 400GbE QSFP-DD ports in 1RU systems with an overall throughput of 25.6Tbps. The Ruijie B6930-32CDQ2XS support industry standard optics and cables allowing for ease of migration to 400G. All ports allow a choice of speeds including 400GbE, 200GbE or 100GbE, up to 128 interfaces. We give the best B6930-32CDQ2XS Switch price in Dubai. Also we are the top B6930-32CDQ2XS Switch suppliers in Dubai. Also we give good B6930-32CDQ2XS Switch support services in Dubai.
The Ruijie B6930-32CDQ2XS switch support latency as low as 700ns in cut-through mode, and a 64 MB packet buffer with a large shared pool allowing for superior burst absorption compared to systems with fixed port buffering.NOTE：Ruijie B6930-32CDQ2XS is a bare metal switch hardware system with Open Network Install Environment (ONIE). Customer should install networking operation system before use, or contact Ruijie Networks co. for OS support.
Performance
Data Center Optimized Design
Cloud Networking Ready
Resilient Control Plane
| Switch Model |
B6930-32CDQ2XS |
| Ports |
32×QSFP-DD + 2×SFP+ |
| Max 400GbE Ports |
32 |
| Max 200GbE Ports |
64 (2×200GbE) |
| Max 100GbE Ports |
128 (4×100GbE) |
| Max 1/10GbE Ports |
2 |
| Throughput (full duplex) |
25.6Tbps |
| Packets/Second |
8Bpps |
| Latency (cut-through mode) |
700ns |
| CPU |
Intel Xeon D-1527 |
| System Memory |
8GB (Up to 32GB) |
| System Storage |
≥64GB |
| BMC Option |
Yes |
| Switch ASIC |
Broadcom BCM56980 (Tomahawk III) |
| Packet Buffer Memory |
64MB (Dynamic Buffer Allocation) |
| 10/100/1000 MGMT Ports |
1 |
| RS-232 Serial Ports |
1 (RJ-45) |
| USB Ports |
1 |
| Hot-swap Power Supplies |
2 (1+1 redundant) |
| Hot-swappable Fans |
6 (5+1 redundant) |
| Airflow Option |
Yes (Forward and Reversed airflow) |
| Typical/ Max Power Draw |
658W/1183W |
| Typical/Max Heat Dissipation |
2245.7/3754.3 BTU/hr |
| Size(W×H×D) |
17.24×1.70×25.20 in. (438×43.1×640mm) |
| Weight |
29.7 pounds (13.5kg) |
| Power Supplies |
1200W (Forward and Reversed airflow) |
Standard Compliance
| EMC | Emissions: FCC, EN55022, EN61000-3-2, EN61000-3-3 or EN61000-3-11, EN61000-3-12 (as applicable)
Immunity: EN55024 Emissions and Immunity: EN300 386 |
| Safety | UL/CSA 60950-1, EN 60950-1, IEC 60950-1 CB Scheme with all country differences |
| Certifications | North America (NRTL)
European Union (EU) BSMI (Taiwan) C-Tick (Australia) CCC (PRC) MSIP (Korea) EAC (Customs Union) VCCI (Japan) |
| European Union Directives | 2006/95/EC Low Voltage Directive
2004/108/EC EMC Directive 2011/65/EU RoHS Directive |
Power Supply Specifications
| Power Supply |
1200W |
| Input Voltage |
100-240V AC 240V DC |
| Typical Input Current |
12-7A (AC) 6A (DC) |
| Input Frequency (AC) |
50~60Hz |
| Input Connector |
IEC 320-C13 |
| Efficiency (Typical) |
94% Platinum |
Environmental Characteristics
| Operating Temperature |
32 to 104° F (0 to 40°C) |
| Storage Temperature |
-40 to 158° F (-40 to 70°C) |
| Relative Humidity |
5 to 95% non-condensing |
| Altitude (Operating) |
Designed to meet: 0 to 10,000ft |
| Altitude (Non-operating) |
-1000ft to 30,000ft |
