Description

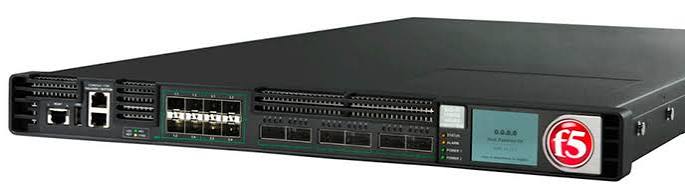

BIG-IP i10000 Series Appliance

The BIG-IP i10000 Series Appliance is an F5 application delivery platform built for organizations that need high-capacity traffic management, application performance, and scalable delivery services. The series includes the i10600 and i10800 platforms in a compact 1U rack-mount design. It supports demanding Layer 4 and Layer 7 workloads while providing dedicated interfaces for network, management, console, and failover connections.

The platform combines F5 BIG-IP software with purpose-built hardware. This design helps organizations manage application traffic, process large numbers of connections, and offload selected workloads from application servers. The i10000 Series also supports hardware acceleration features for SSL/TLS, DDoS protection, compression, and traffic processing, depending on the model and licensed services.

Key Features of BIG-IP i10000 Series Appliance

High-Performance Layer 4 and Layer 7 Processing

The BIG-IP i10000 Series Appliance processes application traffic at Layers 4 and 7. Layer 4 processing handles connections and transport traffic. Layer 7 processing uses application-level information to make traffic decisions. The i10800 supports up to 3.5 million Layer 7 requests per second and 1.5 million Layer 4 connections per second. Both i10600 and i10800 platforms support up to 100 million concurrent Layer 4 connections.

SSL/TLS Offloading

Encrypted traffic can increase the processing load on application servers. The i10000 Series uses dedicated hardware to handle selected SSL/TLS operations. The i10800 supports up to 48K ECC transactions per second and 80K RSA transactions per second. It also supports up to 40 Gbps of bulk encryption. The i10600 provides up to 30K ECC transactions per second and 37K RSA transactions per second.

High-Speed Network Connectivity

The i10600 and i10800 provide eight 10GbE SFP+ ports and six 40GbE QSFP+ ports. They also include dedicated management, console, failover, and USB interfaces. For environments that require higher-speed connections, the i10010 platform includes the i10610 and i10810 configurations. These provide four 40GbE QSFP+ ports and four 100GbE QSFP28 ports.

Hardware-Accelerated Security

The platform provides hardware acceleration for selected security workloads. F5 lists hardware DDoS protection of up to 70 million SYN cookies per second on the i10600 and 130 million on the i10800. The i10800 also supports a hardware compression rate of up to 40 Gbps. These capabilities can help reduce the processing load on application infrastructure when the relevant BIG-IP services are deployed.

TurboFlex Performance Profiles

The i10000 Series supports F5 TurboFlex performance profiles on platforms with the applicable high-performance licensing. These profiles group hardware-accelerated features for specific use cases. For example, F5 provides an ADC profile when BIG-IP LTM is licensed and provisioned. A Security profile is available when BIG-IP AFM is licensed and provisioned.

High Availability Support

The i10000 platform supports redundant hardware configurations for enterprise deployments. The platform supports hot swapping of optical transceiver modules, fan trays, and power supplies in dual-supply systems. A dedicated failover interface also supports BIG-IP high availability configurations.

Capabilities

• Application delivery: The platform manages traffic between clients and application servers. It can distribute requests and control application traffic flows.
• Traffic management: BIG-IP can make traffic decisions using Layer 4 and Layer 7 information.
• SSL/TLS processing: Dedicated hardware can handle supported encryption workloads and reduce processing demands on application servers.
• Application availability: BIG-IP traffic management and failover features can support resilient application delivery environments.
• Performance optimization: Hardware acceleration helps process demanding traffic and selected security workloads.
• DDoS protection: Supported hardware can process large volumes of SYN cookies to help manage certain network-level attacks.
• Centralized management: BIG-IP provides management through TMOS and can integrate with F5 management solutions.
• Virtualization: The i10800 supports up to 16 vCMP guests according to F5’s platform specifications.

Key Specifications

Common Use Cases

The BIG-IP i10000 Series Appliance fits application delivery environments that need high traffic capacity, controlled application flows, and enterprise-grade availability. Organizations can use it in data centers to manage web applications, customer portals, enterprise systems, and other critical services.

It can also handle SSL/TLS processing and connect with high-speed 10GbE and 40GbE network infrastructure. Organizations that need 100GbE connectivity can consider the i10010 platform configurations. The exact deployment depends on application traffic, licensing, network design, and required BIG-IP services.

Real-World Deployment Scenarios

• Enterprise Web Applications: Distribute application requests across multiple backend servers and manage high volumes of user traffic.
• E-commerce Platforms: Handle customer traffic across web and application servers during normal and high-demand periods.
• Banking and Financial Applications: Manage application traffic and SSL/TLS workloads for business-critical financial services.
• Data Center Applications: Place the appliance between users and application servers to control traffic within an enterprise data center.
• Telecom and Service Provider Environments: Manage high connection volumes and high-speed application traffic across network infrastructure.
• Business-Critical Applications: Use BIG-IP traffic management and high availability features for applications that require consistent service availability.

Why Choose Netmate for BIG-IP i10000 Series Appliance?

Netmate IT helps organizations in Nepal evaluate and deploy F5 solutions based on their application, delivery, security, and network requirements. For the BIG-IP i10000 Series Appliance, Netmate can assist teams in selecting the suitable platform, planning the deployment, integrating the appliance with existing infrastructure, and identifying the required software and licensing services.

The right configuration depends on traffic volume, connection requirements, SSL/TLS workloads, security needs, and network infrastructure. Netmate can help organizations assess these factors before deployment and build an F5 solution that fits their environment.

Frequently Asked Questions

What is the BIG-IP i10000 Series Appliance?

The BIG-IP i10000 Series is an F5 hardware platform designed for application delivery and traffic management. The series includes the i10600 and i10800 models. Both use a 1U rack-mount design and provide high-speed network interfaces for enterprise environments.

What is the difference between the i10600 and i10800?

The i10600 and i10800 use the same general hardware platform but provide different performance levels. The i10800 supports up to 3.5 million L7 requests per second and 1.5 million L4 connections per second. The i10600 supports up to 2.1 million L7 requests and 1 million L4 connections per second. Both support up to 160 Gbps L4 and 80 Gbps L7 throughput and up to 100 million concurrent L4 connections.

How much throughput does the BIG-IP i10000 Series support?

The i10600 and i10800 support up to 160 Gbps of Layer 4 throughput and 80 Gbps of Layer 7 throughput. Actual performance depends on the traffic profile, configuration, and BIG-IP services enabled.

What network interfaces does the BIG-IP i10000 have?

The i10600 and i10800 provide eight 10GbE SFP+ ports and six 40GbE QSFP+ ports. They also include a 1GbE management port, RJ45 console and failover ports, and a USB 2.0 interface. The i10010 platform provides four 40GbE and four 100GbE interfaces.

Who should use the BIG-IP i10000 Series Appliance?

The platform fits organizations that need high-capacity application delivery, traffic management, SSL/TLS processing, and scalable network connectivity. It can suit large enterprise data centers, service provider environments, and other infrastructure that handles demanding application workloads. The appropriate model should be selected based on traffic volume, required services, and network design
