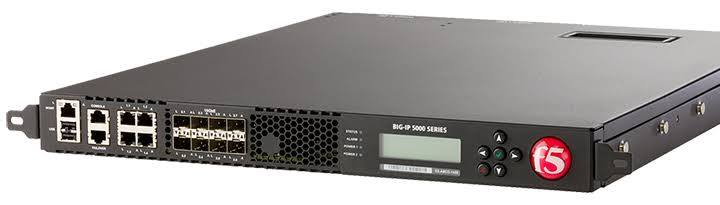

BIG-IP i5000 Series Appliance

The BIG-IP i5000 Series Appliance is designed for mid-to-large corporate environments that need high-performance application delivery and security offerings. It provides a hardware-based platform for managing application traffic, as well as supporting offerings such as load balancing, SSL/TLS offload, application security, access control, and network security.

The series consists of models that include the BIG-IP i5600 and i5800. The i5800 reaches up to at least 1.8 million L7 requests per second, while the i5600 supports up to at least 1 million. Both models support as much as 40 million concurrent L4 connections and 60 Gbps/35 Gbps L4/L7 throughput.

The platform also supports F5 programmable hardware capabilities, programmability, and hardware acceleration. This lets companies consolidate a couple of application offerings on a single appliance.

Key Features of BIG-IP i5000 Series Appliance

Layer 4 and Layer 7 Processing

The BIG-IP i5000 Series processes traffic at Layers 4 and 7. Layer 4 processing manages connections and network traffic. Layer 7 processing enables traffic choices based on application-level information. The i5600 helps up to at least 1 million L7 requests per second, whilst the i5800 supports up to 1.8 million.

SSL/TLS Offloading

SSL/TLS processing can consume application server assets. The BIG-IP i5000 Series helps with hardware-assisted SSL/TLS processing to address supported encryption workloads on the appliance. The i5600 supports up to 20K RSA transactions per second, while the i5800 supports up to 35K RSA transactions per second under F5’s posted test conditions.

High-Performance Traffic Management

The platform affords high-capability traffic processing for company programs. Both models can handle as much as forty million concurrent L4 connections and 60 Gbps/35 Gbps L4/L7 throughput. The i5800 also supports up to 12 million L4 HTTP requests per second.

Hardware DDoS Protection

The i5000 Series gives hardware-primarily based DDoS protection for supported traffic conditions. The i5600 supports up to 25 million SYN cookies in line with second, at the same time as the i5800 helps as much as 50 million. This enables the appliance to handle massive volumes of connection requests in the course of network attacks.

TurboFlex Performance

The i5800 supports F5 TurboFlex Performance Profiles at Tier 3. TurboFlex uses programmable hardware to optimize selected traffic processing functions. The i5600 does not list a TurboFlex overall performance profile in the current F5 platform specs.

Virtualized ADC Services

The i5800 supports F5 vCMP with up to eight BIG-IP traffic times. This allows companies to run more than one virtualized BIG-IP environment on the identical physical appliance. The i5600 no longer lists vCMP guest aid in the referenced F5 specs.

Capabilities

• Application delivery: The platform manages traffic between customers and application servers. It can distribute requests and manage application traffic flows.

• Traffic management: BIG-IP can handle Layer 4 and Layer 7 traffic. This lets administrators apply guidelines based on connection and alert data.

• SSL/TLS processing: Hardware-assisted processing supports selected encrypted traffic workloads and might lessen the processing load on application servers.

• Application availability: BIG-IP traffic control capabilities can help organizations build resilient application delivery environments.

• DDoS safety: Hardware DDoS protection enables handling high volumes of connection requests. The i5800 supports up to 50 million SYN cookies per second.

• Virtualization: The i5800 supports up to 8 vCMP guests for virtualized BIG-IP deployments.

Key Specifications

Common Use Cases

The BIG-IP i5000 Series Appliance fits environments that need extensive application delivery, traffic management, and security offerings. Organizations can install it in data centers to manage internet applications, organizational structures, consumer portals, and different commercial enterprise-critical services. It can also aid SSL/TLS processing, DDoS protection, and virtualized BIG-IP deployments on the i5800. The appropriate model relies upon application traffic, performance necessities, licensing, and required BIG-IP services.

Real-World Deployment Scenarios

• Enterprise Web Applications: Distribute incoming requests throughout a couple of application servers and handle excessive volumes of application traffic.

• E-commerce Platforms: Handle consumer traffic across web and application servers during normal and peak traffic periods.

• Banking and Financial Applications: Manage application traffic and support SSL/TLS processing for enterprise-vital monetary offerings.

• Data Center Applications: Place the equipment between users and application servers to govern traffic within the data center.

• Service Provider Infrastructure: Use extensive connection capacity and traffic processing to help demanding application delivery environments.

• Multi-Tenant Environments: Use the i5800’s vCMP to run more than one BIG-IP guest instance on shared physical infrastructure.

Why Choose Netmate for BIG-IP i5000 Series Appliance?

Netmate IT facilitates organizations in Nepal compare and install F5 solutions based totally on their application delivery, traffic, protection, and infrastructure requirements. For the BIG-IP i5000 Series, Netmate can assist organizations in picking out the proper platform, planning the deployment, integrating the appliance with existing infrastructure, and configuring the specified BIG-IP offerings and licensing.

Netmate can also help with application delivery and network protection requirements across the F5 platform. The focus is on constructing a practical solution that suits the organisation’s traffic quantity, application architecture, availability necessities, and future infrastructure needs.

Frequently Asked Questions

What is the BIG-IP i5000 Series Appliance?

The BIG-IP i5000 Series is an F5 hardware platform for application delivery and traffic management. The series includes the i5600 and i5800 models. Both use a 1U rack-mount chassis and support up to 60 Gbps/35 Gbps L4/L7 throughput.

What is the difference between the i5600 and i5800?

The i5600 and i5800 offer the same maximum L4/L7 throughput of 60 Gbps/35 Gbps. However, the i5800 supports better L7 request and L4 connection rates. It also provides hardware compression, better hardware DDoS protection, TurboFlex Tier 3, and up to 8 vCMP guests.

How much throughput does the BIG-IP i5000 Series support?

Both the i5600 and i5800 support up to 60 Gbps L4 throughput and 35 Gbps L7 throughput in line with F5’s published platform specifications. Actual overall performance depends on the enabled services, traffic profile, configuration, and test conditions.

What SSL/TLS capabilities does the BIG-IP i5000 Series provide?

The platform supports hardware-assisted SSL/TLS processing. The i5600 provides up to 13K ECC TPS and 20K RSA TPS, even as the i5800 affords as much as 20K ECC TPS and 35K RSA TPS under F5’s published check conditions.

Who should use the BIG-IP i5000 Series Appliance?

The platform suits mid-to-large corporate environments that need high-capacity application delivery and traffic control. It can support data centers, enterprise applications, e-commerce platforms, financial offerings, and other environments with demanding application traffic requirements.
