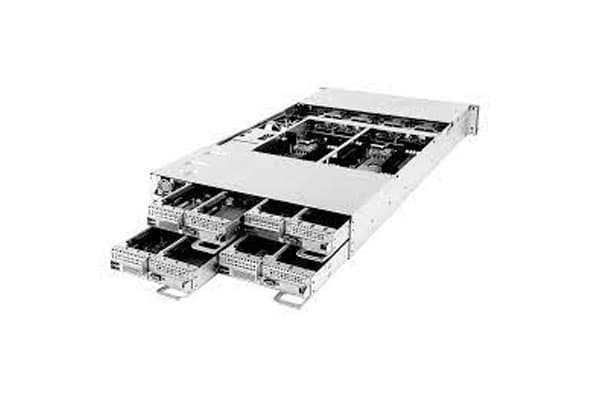

CLOE 4SP High density compute server

We give the best CLOE 4SP High density compute server price in Dubai.

CLOE 4SP is a 2U/ 4N server supporting 2nd Gen.

CLOE 4SP High density compute server price in Dubai

DESIGN PRINCIPLES
• Powerful compute and dense storage.
• 2U – 4 nodes with rear access to the node trays.
• Optimal platform for large scale data center and HPC
deployments.

KEY BENEFITS
• Flexible storage configuration
• High density server
• Fast and efficient memory

KEY FEATURES
Unique solution which supports :
• Up to 8x 2nd Gen. Intel® Xeon® Scalable and Intel®
Xeon® Scalable Processors
• 8x LGA3647 sockets
• 1x CMC global management port
• 6x Channel RDIMM/LRDIMM DDR4, 64 x DIMMs
• 8x 2.5’’ U.2 NVMe hot-swap
• 16x SATA/SAS hot-swappable HDD/SSD bays

Top Applications of CLOE 4SP High density compute server

System

• Model CLOE 4SP
• Form Factor 2U 4N
• Dimension
• (D x W x H)
• 820 x 440 x 87mm
• 32’’ x 17,32’’ x 3,42’’
• Sled 4 per shelf
• Weight 35kg (full packaging)

Storage

• Front type
• 16x 2.5’’ SAS/SATA hot-swappable HDD/
• SSD bays
• 8x 2.5’’ U.2 or SATA hot-swappable HDD/
• SSD bays
• Internal type

Motherboard

• CPU Up to 8x 2nd Gen. Intel® Xeon® Scalable
• and Intel® Xeon® Scalable Processors
• Chipset Intel® C621
• Expansions
• slots
• 4x PCIe 3.0 x16 slots (HL, LP)
• 4x PCIe 3.0 x8 (HL, LP)
• 4x OCP mezzanine PCIe 3.0 x16
• M.2 connector –
• Network 4x management ports

Processor

• Socket type 8x socket P (LGA3647)
• Supported CPU 2nd Gen. Intel® Xeon® Scalable and
• Intel® Xeon® Scalable Processors
• TDP Max up to 165W

Memory

• Quantity 64x DIMM slots
• Speed Up to DDR4 2933/2666/2400/2133 MHz
• Channels 6 channels per CPU



Server management

• BMC IPMI 2.0 / Redfish
• Chipset Aspeed® AST2500
• TPM 4x TPM header with LPC interface

Front I/O

* Button :

4x Power button
4x ID button
4x Status button
* LED :
4 x Power LED
4 x ID LED
4 x Status LED
Port –

Back I/O
Button –
LED 4x ID LED
Port
8x USB 3.0
4x VGA
4x RJ45 MLAN

Internal connector

Port 4x COM header

System Cooling

Fans 8x fans (80x80x38mm)

Power Input

Type 2x 2200W redundant PSU
Input Range 80+ Platinum

CLOE 4SP High density compute server price

Operating Environnement

RoHS

RoHS compliant
Temperature

Operating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 60°C
Humidity

Operating humidity : 8-80% (non-condensing)
Non-operating humidity : 20%-95%
(non-condensing)
