Sophos CS1010-8FP 10-Gigabit PoE Switch

Description

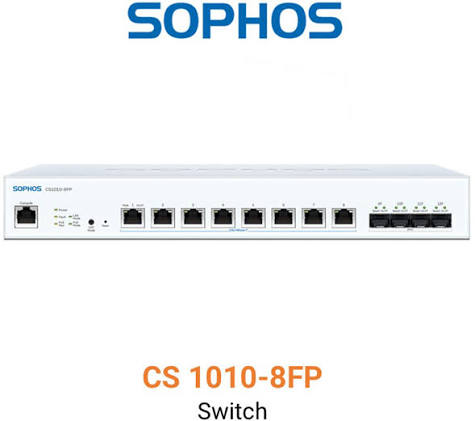

Sophos CS1010-8FP Switch

Cloud-managed 8-port 10-gigabit multi-gigabit PoE switch with four SFP+ uplinks and a 410 W power budget supporting 802.3bt. 1U rackmount design built for high-speed access and aggregation within the Sophos ecosystem.

Connectivity and Power

Eight auto-negotiating multi-gigabit (1/2.5/5/10G) copper PoE ports serve and power demanding end devices. Four SFP+ ports support 1G or 10G uplinks.

Performance and Features

120 Gbps switching capacity, 32K MAC table, and support for up to 256 VLANs deliver solid Layer 2 performance at 10-gigabit speeds.

Management

Sophos Central provides zero-touch or guided onboarding, configuration, monitoring, and firmware management.

Deployment Flexibility

Standard 1U rackmount form factor with included mounting hardware. Internal power supply for clean installation. Compatible with existing networks using appropriate Cat6 or better cabling.

Why Choose CS1010-8FP?

The dedicated 10-gigabit model in the Sophos Switch portfolio for environments that need maximum copper port speeds with modern PoE support.

Configuration Guide

Step 1 – Physical Installation

Install the switch in a standard 19-inch rack using the included ears and screws. Ensure proper airflow.

Step 2 – Power Connection

Connect the internal power supply to a suitable power source and power on the switch.

Step 3 – Network Connection

Connect uplink cables to the SFP+ ports. Use Cat6 or better cabling for multi-gigabit and 10G copper ports.

Step 4 – Sophos Central Onboarding

Register or claim the switch in Sophos Central. Follow the guided setup.

Step 5 – VLAN and Port Configuration

Create VLANs, assign ports, and configure access control or QoS policies via Central.

Step 6 – PoE Settings

Monitor PoE power budget, enable or disable PoE per port, and set priority. Note 802.3bt support for higher-power devices.

Step 7 – Uplink and Redundancy

Configure SFP+ uplinks, link aggregation if needed, and spanning-tree settings.

Step 8 – Security Settings

Apply 802.1X, MAC authentication, ACLs, and other security features as required.

Step 9 – Monitoring and Firmware

Enable monitoring, set up alerts (including PoE status), and schedule firmware updates through Sophos Central.

Step 10 – Testing

Verify 10G and multi-gigabit connectivity, PoE power delivery, VLAN isolation, uplink performance, and management status.

CS1010-8FP Mounting Options

Rack Mount

Standard 1U installation in a 19-inch rack. Mounting ears and screws are included.

Ensure adequate ventilation and follow standard rack installation practices.

Installation Best Practices

Manufacturer Guidelines

Operate within 0–40 °C. Use the internal power supply. Provide adequate rack ventilation. Do not exceed the 410 W PoE budget. Use Cat6 or better cabling for reliable multi-gigabit and 10G performance.

General Best Practices

Plan VLAN structure and PoE power allocation before deployment. Keep firmware current via Sophos Central. Label ports clearly. Maintain proper airflow in the rack.

Benefits for IT Teams

Centralized management reduces on-site effort. True 10G copper ports eliminate bottlenecks for high-speed devices. 802.3bt support powers modern high-demand endpoints. Consistent Sophos ecosystem visibility.

Main Features

8× Multi-Gigabit Ports up to 10G

Eight 1G/2.5G/5G/10GBASE-T ports.

Benefit: True 10-gigabit speeds for servers, NAS, media, and high-performance devices.

410 W PoE Budget with 802.3bt

Supports 802.3af, 802.3at, and 802.3bt up to 60 W per port.

Benefit: Power high-demand devices including modern Wi-Fi 6E access points.

4× SFP+ Uplinks

Four 1G/10G SFP+ slots.

Benefit: Flexible high-speed fiber or copper uplinks.

Sophos Central Management

Cloud management through Sophos Central.

Benefit: Unified visibility and control with firewalls and access points.

1U Rackmount Design

Standard rack form factor with included mounting hardware.

Benefit: Easy integration into existing network closets.

1000 Series 10G Performance

Dedicated 10-gigabit model in the Sophos Switch portfolio.

Benefit: Highest copper port speeds available in the current Sophos Switch range.

Product Deployment Scenarios

1. Server and NAS Connectivity

High-speed connections for servers, storage, and backup systems.

2. Media Production and CAD

Fast transfers for video editing, large file content, and design workloads.

3. High-Performance Wi-Fi 6E Access Points

Power and backhaul for high-throughput Sophos AP6 840E and similar devices.

4. Aggregation of Gigabit Switches

Uplink multiple lower-speed switches for improved overall performance.

5. High-Speed Internet Edge

Leverage fiber-to-the-premises or high-speed WAN connections.

6. Sophos Ecosystem Deployments

Pairs with Sophos firewalls and access points under a single Central console.

Who Should Buy CS1010-8FP?

Organizations needing 10-gigabit copper connectivity for servers, storage, media production, high-speed access points, or aggregation. Ideal for Sophos Central environments that require the highest available copper port speeds with PoE.

CS1010-8FP Product Comparison

Analysis

Choose the CS1010-8FP when true 10-gigabit copper ports and high PoE++ capacity are required. Use CS210-8FP for 2.5G multi-gig needs, or higher-port-count models for greater density.

Frequently Asked Questions

What is the Sophos CS1010-8FP?

An 8-port 10-gigabit multi-gigabit PoE managed switch with four 1G/10G SFP+ uplinks, 410 W PoE budget supporting 802.3bt, 1U rackmount design, and Sophos Central management.

Does the CS1010-8FP support PoE?

Yes. It supports IEEE 802.3af, 802.3at, and 802.3bt with a total power budget of 410 W (up to 60 W per port).

What speeds do the copper ports support?

1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps.

How is it managed?

Primarily through Sophos Central for cloud-based configuration and monitoring.

What is the switching capacity?

120 Gbps.

How many SFP+ ports does it have?

Four 1G/10G SFP+ uplink ports.

Is it rack-mountable?

Yes. It is a standard 1U rackmount switch with mounting ears and screws included.

What cabling is required for 10G?

Cat6 or better is recommended for reliable multi-gigabit and 10G performance.

Is it suitable for high-power access points?

Yes. The 802.3bt support and 410 W budget are well suited for devices such as the Sophos AP6 840E.

Does it support 10G uplinks?

Yes. The four SFP+ ports support both 1G and 10G modules.
