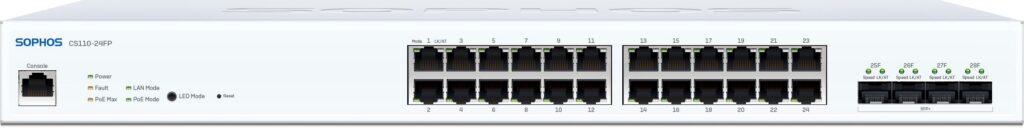

Sophos CS210-24FP Multi-Gigabit PoE Switch

Description

Sophos CS210-24FP Switch

Cloud-managed 24-port multi-gigabit PoE switch with a mix of 1G and 2.5G ports, four SFP+ uplinks, and a 410 W power budget. 1U rackmount design built for modern access-layer performance within the Sophos ecosystem.

Connectivity and Power

Sixteen Gigabit and eight multi-gigabit (up to 2.5G) copper PoE ports serve and power end devices. Four SFP+ ports support 1G or 10G uplinks to core switches, firewalls, or fiber infrastructure.

Performance and Features

152 Gbps switching capacity, 16K MAC table, and support for up to 256 VLANs deliver solid Layer 2 performance while supplying reliable mixed-speed and PoE power.

Management

Sophos Central provides zero-touch or guided onboarding, configuration, monitoring, and firmware management in the same console used for Sophos security products.

Deployment Flexibility

Standard 1U rackmount form factor with included mounting hardware. Internal power supply for clean installation.

Why Choose CS210-24FP?

A practical multi-gigabit PoE switch for environments that need a combination of standard Gigabit and higher 2.5G speeds with solid PoE capacity. Ideal mid-range option in the Sophos Switch 200 Series.

Configuration Guide

Step 1 – Physical Installation

Install the switch in a standard 19-inch rack using the included ears and screws. Ensure proper airflow.

Step 2 – Power Connection

Connect the internal power supply to a suitable power source and power on the switch.

Step 3 – Network Connection

Connect uplink cables to the SFP+ ports. Assign multi-gigabit ports to high-performance devices and Gigabit ports to standard endpoints.

Step 4 – Sophos Central Onboarding

Register or claim the switch in Sophos Central. Follow the guided setup for network settings and management.

Step 5 – VLAN and Port Configuration

Create VLANs, assign ports, and configure any required access control or QoS policies via Central.

Step 6 – PoE Settings

Monitor PoE power budget, enable or disable PoE per port, and set priority if needed.

Step 7 – Uplink and Redundancy

Configure SFP+ uplinks, link aggregation if needed, and spanning-tree settings.

Step 8 – Security Settings

Apply 802.1X, MAC authentication, ACLs, and other security features as required.

Step 9 – Monitoring and Firmware

Enable monitoring, set up alerts (including PoE status), and schedule firmware updates through Sophos Central.

Step 10 – Testing

Verify multi-gigabit and Gigabit connectivity, PoE power delivery, VLAN isolation, uplink performance, and management status.

CS210-24FP Mounting Options

Rack Mount

Standard 1U installation in a 19-inch rack. Mounting ears and screws are included.

Ensure adequate ventilation and follow standard rack installation practices for cable management and airflow.

Installation Best Practices

Manufacturer Guidelines

Operate within 0–40 °C. Use the internal power supply. Provide adequate rack ventilation. Do not exceed the 410 W PoE budget. Note that 10M full/half and 100M half duplex are not supported on multi-gig ports.

General Best Practices

Use quality Cat5e or better cabling (Cat6 recommended for consistent 2.5G). Plan VLAN structure and PoE power allocation before deployment. Keep firmware current via Sophos Central. Label ports clearly. Maintain proper airflow in the rack.

Benefits for IT Teams

Centralized management reduces on-site configuration effort. Mixed 1G/2.5G ports provide flexible access-layer design. Solid PoE budget powers modern devices. Consistent Sophos ecosystem visibility for security and networking teams.

Six Main Features

Mixed 1G and 2.5G PoE Ports

Sixteen Gigabit and eight multi-gigabit (2.5G) PoE ports.

Benefit: Flexible speeds for both standard and high-performance devices.

410 W PoE Budget

Supports 802.3af and 802.3at with a 410 W budget.

Benefit: Power multiple access points, phones, or cameras.

4× SFP+ Uplinks

Four 1G/10G SFP+ slots.

Benefit: Flexible high-speed uplinks to core or distribution layers.

Sophos Central Management

Cloud management through Sophos Central.

Benefit: Unified visibility and control with firewalls and access points.

1U Rackmount Design

Standard rack form factor with included mounting hardware.

Benefit: Easy integration into existing network closets.

200 Series Multi-Gig Performance

Part of the multi-gigabit 200 Series portfolio.

Benefit: Higher per-port speeds than pure Gigabit 100 Series models.

Product Deployment Scenarios

1. Modern Offices with Wi-Fi 6/6E

Power and connect high-performance Sophos AP6 access points on the multi-gigabit ports while serving standard devices on Gigabit ports.

2. Mixed-Speed Access Layers

Provide both 1G and 2.5G connectivity in a single switch for diverse endpoint requirements.

3. Medium-to-Large Branches

High-density multi-gig PoE switch managed centrally via Sophos Central.

4. High-Performance Workstations + APs

Assign multi-gigabit ports to demanding workstations or access points.

5. Future-Proof Access Layer

Deploy multi-gigabit ready infrastructure alongside standard Gigabit ports.

6. Sophos Ecosystem Deployments

Pairs with Sophos firewalls and AP6 access points under a single Central console.

Who Should Buy CS210-24FP?

Modern offices, sites deploying Wi-Fi 6/6E access points, mixed-speed environments, and any network that needs both Gigabit and multi-gigabit ports with PoE. Ideal for organizations already using or planning to use Sophos Central. Choose a 100 Series model if pure Gigabit is sufficient, or CS210-8FP for a smaller multi-gig footprint.

CS210-24FP Product Comparison

Analysis

Choose the CS210-24FP when you need a mix of standard Gigabit and multi-gigabit (2.5G) ports with solid PoE capacity. Use CS110-24FP for pure Gigabit needs, or CS210-8FP for a smaller multi-gigabit footprint with 802.3bt support.

Frequently Asked Questions

What is the Sophos CS210-24FP?

A 24-port multi-gigabit PoE managed switch with sixteen 1G and eight 2.5G ports, four 1G/10G SFP+ uplinks, 410 W PoE budget, 1U rackmount design, and Sophos Central management.

Does the CS210-24FP support PoE?

Yes. It supports IEEE 802.3af and 802.3at with a total power budget of 410 W.

What speeds do the copper ports support?

Sixteen ports support up to 1 Gbps. Eight ports support 100 Mbps, 1 Gbps, and 2.5 Gbps. Note that 10 Mbps full/half and 100 Mbps half duplex are not supported on the multi-gig ports.

How is it managed?

Primarily through Sophos Central for cloud-based configuration and monitoring.

What is the switching capacity?

152 Gbps.

How many SFP+ ports does it have?

Four 1G/10G SFP+ uplink ports.

Is it rack-mountable?

Yes. It is a standard 1U rackmount switch with mounting ears and screws included.

What is the difference versus CS110-24FP?

CS210-24FP adds eight multi-gigabit (2.5G) ports and belongs to the 200 Series, while CS110-24FP is pure Gigabit from the 100 Series.

Is it suitable for Wi-Fi 6/6E access points?

Yes. The multi-gigabit ports are well suited for high-performance access points that benefit from faster backhaul.

Does it support 10G uplinks?

Yes. The four SFP+ ports support both 1G and 10G modules.
