Sophos CS210-8FP Multi-Gigabit PoE Switch

Description

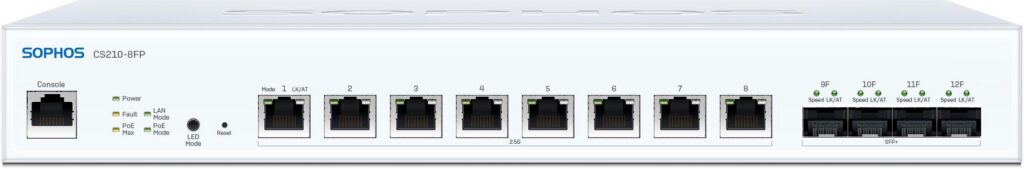

Sophos CS210-8FP Switch

Cloud-managed 8-port multi-gigabit PoE switch with four SFP+ uplinks and a 240 W power budget supporting 802.3bt. 1U rackmount design built for modern access-layer performance within the Sophos ecosystem.

Connectivity and Power

Eight auto-negotiating multi-gigabit (up to 2.5G) copper PoE ports serve and power end devices. Four SFP+ ports support 1G or 10G uplinks to core switches, firewalls, or fiber infrastructure.

Performance and Features

120 Gbps switching capacity and support for up to 256 VLANs deliver solid Layer 2 performance while supplying reliable multi-gigabit and PoE power.

Management

Sophos Central provides zero-touch or guided onboarding, configuration, monitoring, and firmware management in the same console used for Sophos security products.

Deployment Flexibility

Standard 1U rackmount form factor with included mounting hardware. Internal power supply for clean installation.

Why Choose CS210-8FP?

A practical multi-gigabit PoE switch for environments that need higher than 1G speeds and modern PoE support. Ideal entry point into the Sophos Switch 200 Series.

Configuration Guide

Step 1 – Physical Installation

Install the switch in a standard 19-inch rack using the included ears and screws. Ensure proper airflow.

Step 2 – Power Connection

Connect the internal power supply to a suitable power source and power on the switch.

Step 3 – Network Connection

Connect uplink cables to the SFP+ ports and attach multi-gigabit or PoE-powered devices to the RJ45 ports.

Step 4 – Sophos Central Onboarding

Register or claim the switch in Sophos Central. Follow the guided setup for network settings and management.

Step 5 – VLAN and Port Configuration

Create VLANs, assign ports, and configure any required access control or QoS policies via Central.

Step 6 – PoE Settings

Monitor PoE power budget, enable or disable PoE per port, and set priority if needed. Note 802.3bt support for higher-power devices.

Step 7 – Uplink and Redundancy

Configure SFP+ uplinks, link aggregation if needed, and spanning-tree settings.

Step 8 – Security Settings

Apply 802.1X, MAC authentication, ACLs, and other security features as required.

Step 9 – Monitoring and Firmware

Enable monitoring, set up alerts (including PoE status), and schedule firmware updates through Sophos Central.

Step 10 – Testing

Verify multi-gigabit connectivity, PoE power delivery, VLAN isolation, uplink performance, and management status.

CS210-8FP Mounting Options

Rack Mount

Standard 1U installation in a 19-inch rack. Mounting ears and screws are included.

Ensure adequate ventilation and follow standard rack installation practices for cable management and airflow.

Installation Best Practices

Manufacturer Guidelines

Operate within 0–40 °C. Use the internal power supply. Provide adequate rack ventilation. Do not exceed the 240 W PoE budget. Note that 10M full/half and 100M half duplex are not supported on multi-gig ports.

General Best Practices

Use quality Cat5e or better cabling (Cat6 recommended for consistent 2.5G). Plan VLAN structure and PoE power allocation before deployment. Keep firmware current via Sophos Central. Label ports clearly. Maintain proper airflow in the rack.

Benefits for IT Teams

Centralized management reduces on-site configuration effort. Multi-gigabit ports future-proof the access layer. 802.3bt support powers modern high-demand devices. Consistent Sophos ecosystem visibility for security and networking teams.

Main Features

8× Multi-Gigabit (2.5G) PoE Ports

Eight 100/1000/2500BASE-T ports with PoE.

Benefit: Future-proof speeds for high-performance devices and Wi-Fi 6/6E access points.

240 W PoE Budget with 802.3bt

Supports 802.3af, 802.3at, and 802.3bt up to 60 W per port.

Benefit: Power high-demand devices including modern access points.

4× SFP+ Uplinks

Four 1G/10G SFP+ slots.

Benefit: Flexible high-speed uplinks to core or distribution layers.

Sophos Central Management

Cloud management through Sophos Central.

Benefit: Unified visibility and control with firewalls and access points.

1U Rackmount Design

Standard rack form factor with included mounting hardware.

Benefit: Easy integration into existing network closets.

200 Series Multi-Gig Performance

Part of the multi-gigabit 200 Series portfolio.

Benefit: Higher per-port speeds than the 100 Series Gigabit models.

Product Deployment Scenarios

1. Modern Offices with Wi-Fi 6/6E

Power and connect high-performance Sophos AP6 access points that benefit from multi-gigabit backhaul.

2. High-Performance Workstations

Provide 2.5G connectivity for workstations that exceed standard Gigabit speeds.

3. Small-to-Medium Branches

Compact multi-gig PoE switch managed centrally via Sophos Central.

4. High-Power Device Deployments

Support devices requiring 802.3bt PoE++ up to 60 W.

5. Future-Proof Access Layer

Deploy multi-gigabit ready infrastructure for evolving bandwidth needs.

6. Sophos Ecosystem Deployments

Pairs with Sophos firewalls and AP6 access points under a single Central console.

Who Should Buy CS210-8FP?

Modern offices, sites deploying Wi-Fi 6/6E access points, high-performance workstations, and any environment that needs multi-gigabit speeds with PoE. Ideal for organizations already using or planning to use Sophos Central. Choose a 100 Series model if standard Gigabit is sufficient.

CS210-8FP Product Comparison

Analysis

Choose the CS210-8FP when multi-gigabit (2.5G) speeds and 802.3bt PoE are required in a compact 8-port form factor. Use CS101-8FP for simple Gigabit PoE needs, or larger 200 Series models for higher port density.

Frequently Asked Questions

What is the Sophos CS210-8FP?

An 8-port multi-gigabit (up to 2.5G) PoE managed switch with four 1G/10G SFP+ uplinks, 240 W PoE budget supporting 802.3bt, 1U rackmount design, and Sophos Central management.

Does the CS210-8FP support PoE?

Yes. It supports IEEE 802.3af, 802.3at, and 802.3bt with a total power budget of 240 W.

What speeds do the copper ports support?

100 Mbps, 1 Gbps, and 2.5 Gbps. Note that 10 Mbps full/half and 100 Mbps half duplex are not supported.

How is it managed?

Primarily through Sophos Central for cloud-based configuration and monitoring.

What is the switching capacity?

120 Gbps.

How many SFP+ ports does it have?

Four 1G/10G SFP+ uplink ports.

Is it rack-mountable?

Yes. It is a standard 1U rackmount switch with mounting ears and screws included.

What is the difference versus CS101-8FP?

CS210-8FP offers multi-gigabit (2.5G) ports, higher 240 W PoE budget with 802.3bt support, four SFP+ uplinks, and a rackmount form factor.

Is it suitable for Wi-Fi 6/6E access points?

Yes. Multi-gigabit ports and 802.3bt PoE make it well suited for modern high-performance access points.

Does it support 10G uplinks?

Yes. The four SFP+ ports support both 1G and 10G modules.
