Description

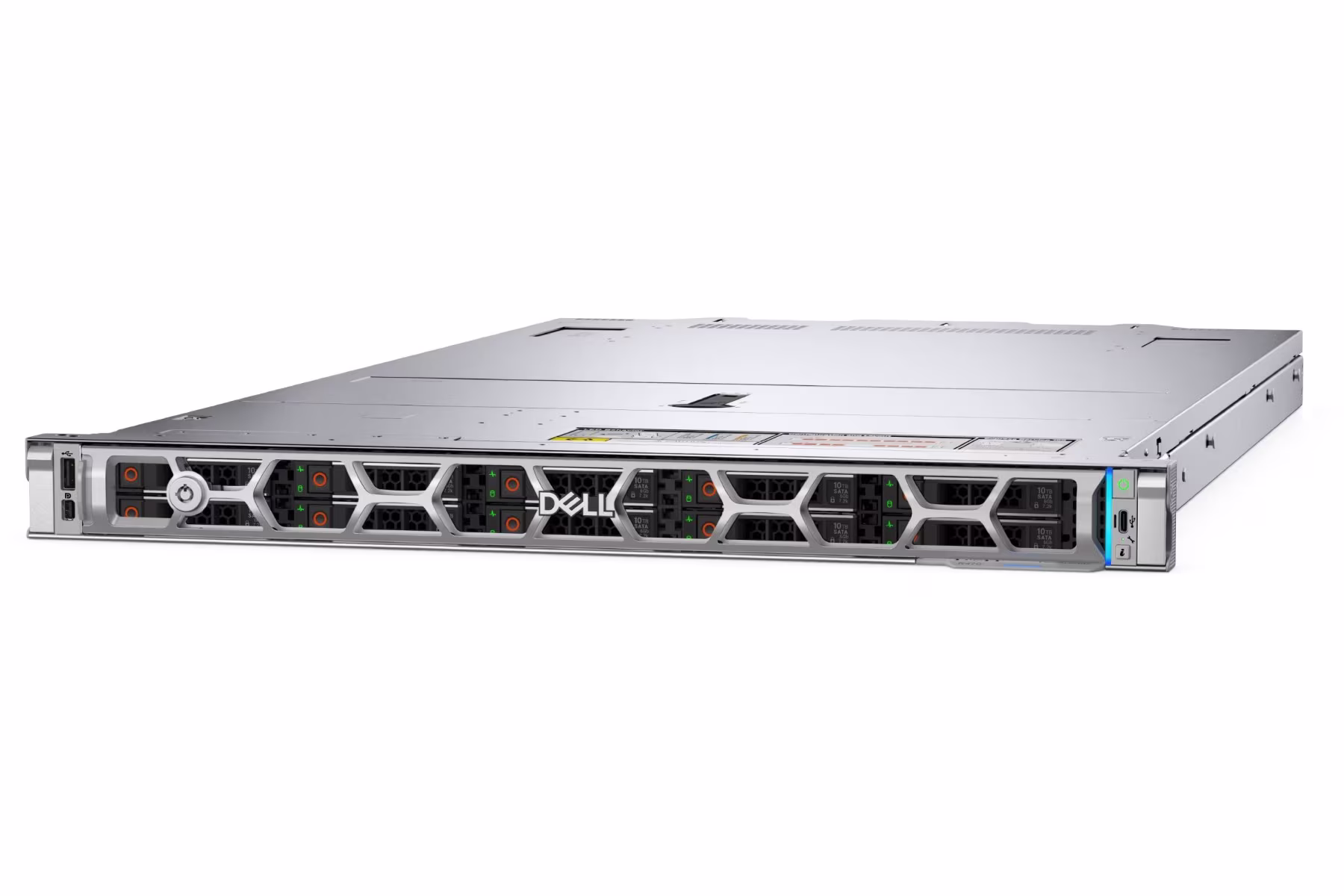

Dell PowerEdge R470
The Dell PowerEdge R470 is a single-socket 1U rack-mount server designed for organizations that require high compute density, power-efficient processing, and flexible storage scalability. Built on Dell’s 17th-generation server architecture, it maximizes rack space while running demanding modern enterprise workloads. The chassis supports high-core-count compute configurations along with dedicated interfaces for remote management, network expansion, and high-speed data connectivity.
The platform combines Intel Xeon 6 processors with enterprise-grade server infrastructure. This design allows organizations to manage dense virtualization environments, process cloud-scale microservices, and handle scale-out databases efficiently. Dell positions the PowerEdge R470 platform for optimized data center performance, power efficiency, and seamless scalability.
Key Features of Dell PowerEdge R470
Intel Xeon 6 Processor Architecture
The PowerEdge R470 supports Intel Xeon 6 processors in both Efficient-core (E-core) and Performance-core (P-core) architectures. E-core configurations offer up to 144 cores for cloud-native microservices and scale-out workloads. P-core configurations supply up to 86 cores focused on compute-heavy databases, virtual machines, and real-time analytics.
High-Speed Memory and PCIe Gen5 Throughput
Memory-intensive applications benefit from 16 DDR5 RDIMM slots operating at up to 6400 MT/s. Combined with PCIe Gen5 expansion slots delivering 32 GT/s per lane, the system ensures high data bandwidth across storage controllers, network interfaces, and single-width GPU accelerators.
Flexible Drive Bays and Storage Systems
The server accommodates diverse drive backplanes, including high-density EDSFF E3.S NVMe drives, traditional 2.5-inch SAS/SATA/NVMe SSDs, and 3.5-inch hard drives. Hardware RAID management is driven by integrated PERC 12 controllers (such as the PERC H965i), protecting critical enterprise data.
Redundant Power and Intelligent Thermal Cooling
Designed for 24/7 data center uptime, the R470 features dual hot-plug redundant power supplies with Platinum and Titanium energy efficiency ratings. Intelligent air cooling and hot-swappable fan modules maintain optimal operating temperatures across high-density compute tasks.
Cyber Resilient Security and Management
Integrated Dell Remote Access Controller 10 (iDRAC10) provides agent-free, out-of-band management. The server includes hardware Silicon Root of Trust, secured component verification, signed firmware, and automated drift detection to protect against unauthorized system tampering.
Capabilities
- Compute Scaling: Delivers high core counts within a single CPU socket to streamline infrastructure footprints.
- Workload Virtualization: Supports hypervisors including VMware ESXi, Microsoft Hyper-V, and Proxmox for VM density.
- Data Acceleration: Leverages PCIe Gen5 and optional single-width GPUs (up to 2 x 75W) for analytics and AI inference.
- Storage Performance: Integrates high-speed NVMe storage options to lower data access latencies in transactional databases.
- Energy Management: Uses smart thermal management and efficient power units to optimize power usage effectiveness (PUE).
- Centralized Administration: Enables remote deployment, system health monitoring, and firmware updates through iDRAC10 and OpenManage Enterprise.
Key Specifications
| Feature / Specification | Details |
| Series | Dell PowerEdge 17th Generation |
| Form Factor | 1U rack-mount chassis |
| Processor | 1 × Intel Xeon 6 processor (E-core up to 144 cores, P-core up to 86 cores) |
| Memory | 16 DDR5 RDIMM slots, up to 1 TB max, speeds up to 6400 MT/s |
| Storage Bays | Up to 16 × EDSFF E3.S Gen5 NVMe OR 8 × 2.5-inch SAS/SATA/NVMe OR 4 × 3.5-inch SATA |
| RAID Controller | PERC H365i, PERC H965i DC-MHS |
| PCIe Slots | Up to 4 × PCIe Gen5 slots (configuration dependent) |
| Network Options | OCP 3.0 NIC slots supporting 1GbE, 10GbE, and 25GbE adapters |
| Management | iDRAC10, iDRAC Direct, OpenManage Enterprise |
| Power Supplies | Dual hot-plug redundant M-CRPS (800W / 1100W / 1500W Platinum/Titanium) |
| Accelerators | Up to 2 × 75W single-width GPUs / DPUs |
Common Use Cases
The Dell PowerEdge R470 fits enterprise technology environments that need processing power, efficient cooling, and flexible handling of data-heavy application workloads. Organizations can deploy it in data centers to power cloud platforms, web applications, transactional databases, and virtualization clusters. It also handles edge computing nodes and scales out modern microservice architectures. The precise deployment depends on workload resource requirements, storage needs, and chosen expansion modules.
Real-World Deployment Scenarios
- Cloud-Scale & Web Microservices: Deploy high-core E-core processors for containerized web services, reverse proxies, and API gateways.
- Virtualization Infrastructure: Host multiple virtual machines across VMware vSphere, Hyper-V, or Proxmox environments.
- Scale-Out Database Workloads: Utilize high-speed NVMe storage and P-core processing for SQL Server, PostgreSQL, and real-time database indexing.
- Software-Defined Storage (SDS): Function as a compact node with high storage drive capacity in distributed cluster environments.
- AI Inference and Edge Analytics: Pair single-width GPU accelerators with PCIe Gen5 bandwidth for real-time data processing.
- High-Performance Computing (HPC): Provide compute nodes for academic, research, and enterprise scientific computations.
Why Choose Netmate for Dell PowerEdge R470?
Netmate IT helps organizations in Nepal evaluate and deploy Dell server architectures based on their compute, storage, and networking requirements. For the Dell PowerEdge R470, Netmate assists teams in selecting suitable processor configurations, memory footprints, drive backplanes, and PERC RAID controllers. From network integration to setting up iDRAC enterprise remote management and warranty support, Netmate delivers practical Dell solutions tailored to business performance and infrastructure growth goals.
Frequently Asked Questions
What is the Dell PowerEdge R470 server?
The Dell PowerEdge R470 is a single-socket 1U rack server featuring Intel Xeon 6 processors. Designed for mainstream data centers, it offers high compute density, DDR5 memory support, and PCIe Gen5 expandability.
What processors are supported in the PowerEdge R470?
The server supports a single Intel Xeon 6 processor, available in either Efficient-core (E-core) configurations with up to 144 cores or Performance-core (P-core) configurations with up to 86 cores.
How much memory does the Dell PowerEdge R470 support?
The platform includes 16 DDR5 RDIMM slots, supporting a maximum memory capacity of up to 1 TB with speeds up to 6400 MT/s.
What storage configurations are available on the R470?
The R470 supports multiple front drive configurations, including up to 16 x EDSFF E3.S Gen5 NVMe drives, up to 8 x 2.5-inch SAS/SATA/NVMe drives, or up to 4 x 3.5-inch SATA drives.
Who should deploy the Dell PowerEdge R470 server?
The server is suitable for organizations requiring a dense 1U rack system for virtualization, cloud-scale applications, high-density web hosting, scale-out databases, and edge compute workloads.
