Description

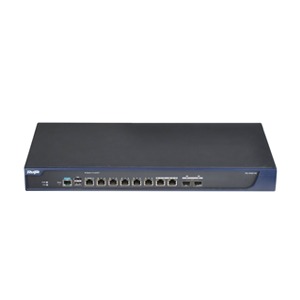

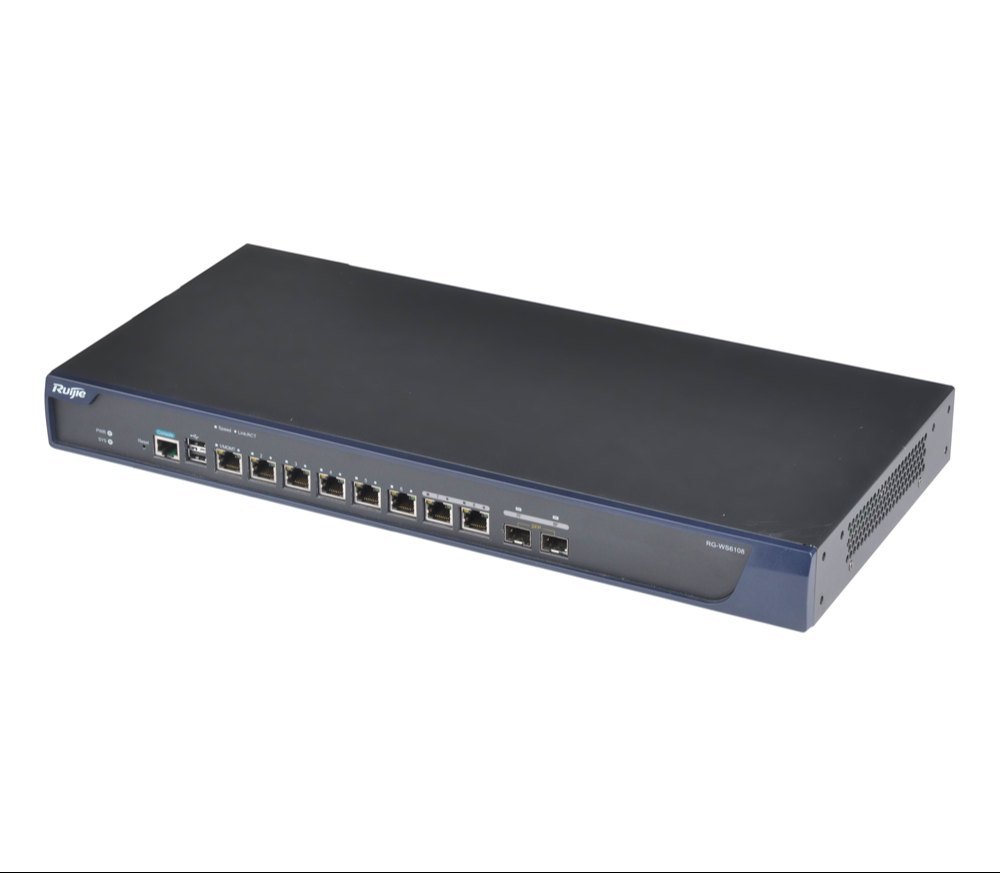

We give the best RG-WS6108 High-Performance Wireless Controller Dubai. Ruijie RG-WS6108 High-Performance Wireless Controller is designed to support the next-generation high-speed wireless network. The RG-WS6108 Wireless Controller can be deployed at either Layer 2 or Layer 3 network to communicate with access point (AP) without any architecture or hardware changes, offering seamless and secure wireless control. The RG-WS6108 Wireless Controller can manage up to 32 wireless APs by default and a maximum capacity of 320 APs (or maximum 640 APs License for Wall AP) with license upgrade. We give the best RG-WS6108 High-Performance Wireless Controller price in Dubai. Also we are the top Ruijie product dealers and distributors in Dubai.
The RG-WS6108 Wireless Controller enables centralized control and management of APs, delivering high transparency and visibility. With Ruijie’s leading management platform Smart Network Commander (RG-SNC) and AP series, the RG-WS6108 Wireless Controller can flexibly manage AP configuration and optimize radio frequency (RF) coverage to enhance the wireless network performance and minimize deployment workload at the same time.
The RG-WS6108 Wireless Controller enables role-based network services with cutting-edge security and clustering technologies. The clustering technology shares wireless user database among multiple controllers and allows users to roam seamlessly across different areas within the network. The RG-WS6108 Wireless Controller thereby delivers smooth wireless voice communications with superior security and availability.
RG-WS6108 High-Performance Wireless Controller Dubai
Specifications :
|
Model |
RG-WS6108 |
|
Service Ports |
8 Gigabit copper ports 2 Gigabit fiber ports (combo) |
|
Management Ports |
1 console port |
|
Operating Temperature |
0ºC to 45ºC |
|
Operating Humidity |
5% to 95%RH (non-condensing) |
|
Storage Temperature |
-40ºC to 70ºC |
|
Storage Humidity |
5% to 95%RH (non-condensing) |
|
Power Consumption |
<40W |
|
Security Standard |
GB4943, EN/IEC 60950-1 |
|
EMC Standard |
GB9254, EN301 489 |
|
Dimensions (W×D×H) (mm) |
440 × 200 × 43.6 |
|
Weight |
2kg |
|
Installation |
19-inch rack |
Software :
|
Model |
RG-WS6108 |
|
|
Performance |
Default Number of Manageable APs |
32 |
|
Maximum Number of Manageable APs |
320 / 640 (for Wall AP) |
|
|
Maximum Number of Configurable APs |
2048 |
|
|
Maximum Number of Manageable Users |
10K |
|
|
802.11 Performance |
8Gbps |
|
|
VLAN |
4K |
|
|
Maximum Number of Clients Supported by the Built-in Portal |
7500 |
|
|
ACL |
64K |
|
|
MAC Address Table |
16K |
|
|
ARP Table |
12K |
|
|
IPv6 Neighbour Table |
10K |
|
|
Local Authentication |
300 wireless clients |
|
|
Inter-AC Roaming Switch Time |
≤50ms |
|
|
WLAN |
802.11 LAN Protocol |
802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n |
|
CAPWAP |
Layer 2/Layer 3 network topology between an AP and an AC |
|
|
Enable an AP to automatically discover an accessible AC |
||
|
Enable an AP to automatically upgrade its software version from an AC |
||
|
Enable an AP to automatically download configurations from an AC |
||
|
Network Address Translation (NAT) traversal |
||
|
Roaming |
Intra-AC Layer 2/Layer 3 roaming |
|
|
Inter-AC Layer 2/Layer 3 roaming |
||
|
Local forwarding intra-AC Layer 2/Layer 3 roaming |
||
|
Local forwarding inter-AC Layer 2/Layer 3 roaming |
||
|
Forwarding |
Centralized forwarding |
|
|
Local forwarding |
||
|
Flexible forwarding based on service |
||
|
Wireless QoS |
AP-based bandwidth limiting |
|
|
WLAN-based bandwidth limiting |
||
|
Static speed limiting and smart speed limiting based on user |
||
|
Fair balancing |
||
|
User Isolation |
User isolation based on ACs in the whole network |
|
|
User isolation based on AP |
||
|
User isolation based on WLAN |
||
|
Reliability |
Fast switching between 2 ACs |
|
|
Multi-AC redundancy (1+1 A/A and A/S, N+1) |
||
|
Multi-AC clustering (N+N) |
||
|
Remote Intelligent Perception Technology (RIPT) |
||
|
Uninterrupted service upgrade |
||
|
STA Management |
AP-based STA limiting |
|
|
SSID-based STA limiting |
||
|
AP-based load balancing |
||
|
AP traffic-based load balancing |
||
|
5G priority access |
||
|
RSSI threshold |
||
|
STA RSSI Threshold |
0 to 100 |
|
|
STA Idle Timeout |
90 to 86,400 seconds |
|
|
STA Average Data Rate Threshold |
8 to 819,200 with the accuracy of 8 kbps |
|
|
Adjusting Transmit Power of Beacons and Probe Responses |
Yes |
|
|
Offline Syslog |
Yes |
|
|
RF Management |
Setting country codes |
|
|
Manually setting the transmit power |
||
|
Automatically setting the transmit power |
||
|
Automatically setting working channels |
||
|
Automatically adjusting transmission rates |
||
|
Support blackhole compensation |
||
|
Support RF interference detection and avoidance |
||
|
Security |
IPv4 Security |
Web authentication |
|
802.1x authentication |
||
|
PEAP authentication |
||
|
SMS authentication |
||
|
QR code authentication |
||
|
IPv6 Security |
802.1x authentication |
|
|
Web authentication |
||
|
802.11 Security and Encryption |
Multi-SSID |
|
|
SSID hiding |
||
|
802.11i-compliant PSK authentication |
||
|
WPA and WPA2 |
||
|
WEP (WEP/WEP128) |
||
|
WAPI |
||
|
TKIP |
||
|
CCMP |
||
|
Protection against ARP spoofing |
||
|
SMP |
Integration with SMP |
|
|
CPP |
Yes |
|
|
NFPP |
Yes |
|
|
WIDS |
Yes |
|
|
Internet Protocols |
IPv4 Protocol |
Ping, Traceroute |
|
DHCP Server |
||
|
DHCP Client |
||
|
DHCP Relay |
||
|
DHCP Snooping |
||
|
DNS Client |
||
|
NTP |
||
|
Telnet |
||
|
TFTP Server |
||
|
TFTP Client |
||
|
FTP Server |
||
|
FTP Client |
||
|
FTP Client |
||
|
IPv6 Protocol |
DNSv6 Client |
|
|
DHCPv6 Relay |
||
|
DHCPv6 Server |
||
|
TFTPv6 Client |
||
|
FTPv6 Server |
||
|
FTPv6 Client |
||
|
IPv6 CAPWAP |
||
|
ICMPv6 |
||
|
IPv6 Ping |
||
|
Manual tunnel, automatic tunnel |
||
|
Manual configuration address, automatic local address |
||
|
IPv6 Traceroute |
||
|
IPv4 Routing |
Static routing, OSPF |
|
|
IPv4 Routing Table Capacity |
8K |
|
|
IPv4 Static Routing Table Capacity |
1K |
|
|
IPv6 Routing |
Static routing |
|
|
IPv6 Routing Table Capacity |
1K |
|
|
IPv6 Static Routing Table Capacity |
1K |
|
|
Management |
Network Management |
SNMP v1/v2c/v3 |
|
RMON |
||
|
Remote probe |
||
|
Syslog |
||
|
Network Management Platform |
Web management (Smart-web) |
|
|
RG-SNC management |
||
|
RILL management |
||
|
Heat Map diagram |
||
|
User Access Management |
Login via console port |
|
|
Login via Telnet |
||
|
Login via SSH |
||
|
Upload to FTP |
||
