Vigor120

In stock

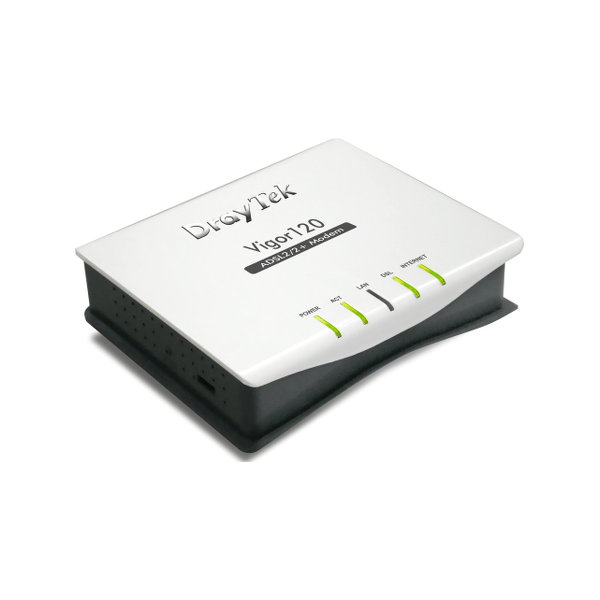

The DrayTek Vigor120 is an ADSL2/2+ modem with an Ethernet connection.
The DrayTek Vigor120 supports PPPoE/PPPoA relay (PPPoA to PPPoE bridging) and the firewall, router or PC all can log into the Internet (your ISP) directly, having complete control over the ADSL connection. Therefore it is possible to connect a PPPoE client to the Vigor120 (firewall, Ethernet-WAN router, Apple Airpor or PC) even if the connection to your ISP is still PPPoA (unlike other-brand modems which only offers PPPoE native bridging). This unique feature is very convenient for PPPoA -based ISPs.
With the Vigor120 bridge/modem, you can have a true single public IP address (or multiple, if you subscribe them) rightly through to your router/or firewall, which also has full control of the ISP connection.
Accordingly, it is ideal for home users and client running multi WAN routers like the Vigor3300V, VigorPro 5300, VigorPro 5510, Vigor2910, Vigor2930, Vigor2950 series and even connecting to the second WAN port on the Vigor2820 series.
The Vigor120 supports TR-069 and it works with most TR-069-based central management system. VigorACS centralized management system can also facilitate ISP’s deployment of installing Vigor120 and provide professional remote management for ISP.

Category:

Description

We give the best Vigor120 price in Dubai. Also we are the top Draytek dealers in Dubai. More than this we give the best draytek product support services in Dubai. In addition to this we are the top draytek distributors in Dubai. Also we are the best draytek partners in Dubai.

1. ADSL Compatibility

  • ANSI T1.413 Issue 2
  • Provides ITU-T 992.1 G.dmt
  • Gives the ITU-T 992.2 G.lite
  • More than this ITU-T 992.3 ADSL2 G.dmt.bis
  • Beyond this ITU-T 992.5 ADSL2+
  • Annex L (READSL)
  • Annex M

2. ATM Protocols

  • PPPoE / PPPoA Relay (PPPoA to PPPoE Bridging)
  • RFC-2684 / RFC-1483 Multiple Protocol over AAL5
  • RFC-2516 PPP over Ethernet
  • RFC-2364 PPP over AAL5
  • PPPoE Pass Through from LAN
  • Transparent Bridge for MPoA
  • Supports 4 PVC

3. Firewall Facilities

  • Multi-NAT, DMZ Host, Port-redirect / Open Port
  • Stateful Packet Inspection (SPI)
  • DoS / DDoS Protection
  • User-configurable IP Packet Filtering

4. Network Features

  • IGMPv2 Proxy
  • DHCP Client / Relay / Server
  • SNTP Client
  • Call Scheduling
  • DNS Cache / Proxy
  • UPnP
  • Static Route

5. Content Filter

  • URL Keyword Blocking (Whitelist and Blacklist)
  • Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
  • Time Schedule Control

6. Network Management

  • Web-based User Interface (HTTP)
  • CLI (Command Line Interface, Telnet)
  • Administration Access Control List
  • Configuration Backup / Restore
  • Build-in Diagnostic Function
  • Firmware upgrade via TFTP / FTP / HTTP / TR-069
  • Logging via Syslog
  • TR-069



Interface of Vigor120
Hardware Interface ADSL 1x RJ-11 Port
LAN 1x RJ-45 10/100 Mbps with Auto-sensing and Auto-MDI-X
Temperature
Operating : 0°C ~ 40°C
Storage : -25°C ~ 70°C
Humidity 20% ~ 90% (Non-condensing)
Max. Power 9 Watt
Dimension L162 * W192 * H33 (mm)
Power 9V 500mA
