Description

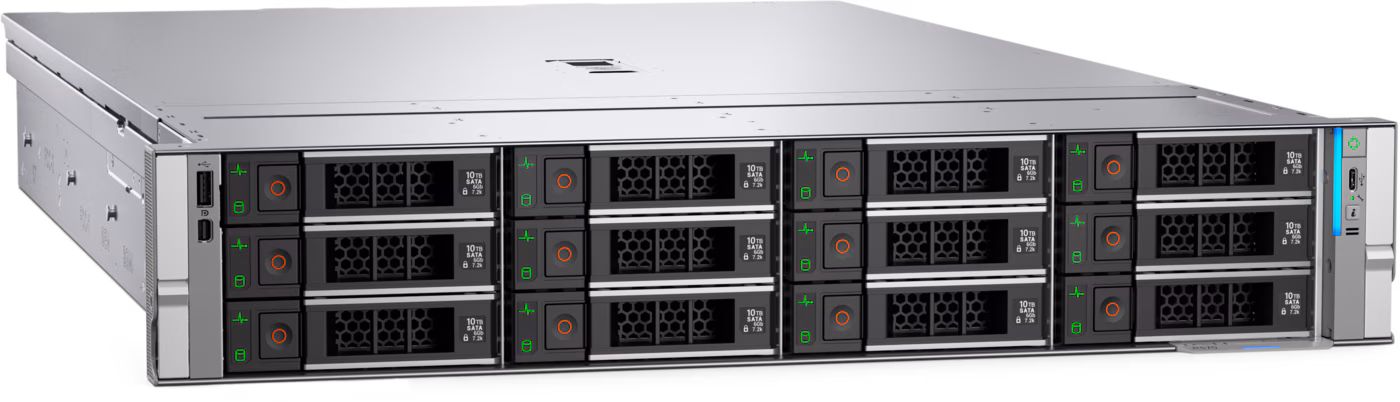

Dell PowerEdge R570 Rack Server
The Dell PowerEdge R570 Rack Server is a 2U single-socket enterprise platform designed for organizations that need high compute density, power efficiency, and flexible expansion. The platform utilizes single-socket Intel Xeon 6 processors to deliver core-dense performance in data center environments. It supports demanding compute workloads while providing versatile drive configurations, GPU acceleration options, and advanced server management.
The server combines Dell’s 17th-generation PowerEdge engineering with Intel Xeon 6 architecture. This design allows businesses to handle virtualization, cloud microservices, software-defined storage, and AI inferencing without requiring multi-socket energy footprints. Dell positions the R570 platform for energy efficiency, infrastructure scale-out, and datacenter cost savings
Key Features of Dell PowerEdge R570 Rack Server
Intel Xeon 6 Architecture
The PowerEdge R570 leverages single-socket Intel Xeon 6 processors in both Efficient-core (E-core) and Performance-core (P-core) variants. E-core configurations maximize thread density for microservices and cloud workloads, while P-core options handle compute-heavy virtualization and scale-out database tasks.
Flexible Storage Options
The server accommodates diverse storage requirements across standard 2.5-inch and 3.5-inch bays, as well as next-generation EDSFF E3.S Gen5 NVMe drives. This versatility enables data center operators to balance high-capacity enterprise HDD pools with ultra-low latency Gen5 NVMe storage arrays.
Next-Gen PCIe Gen5 and Networking
Equipped with PCIe Gen5 slots and dual OCP 3.0 network interface card options, the R570 delivers high network throughput and I/O bandwidth. This design prevents data bottlenecks during intensive storage operations, virtualization routing, and accelerator workloads.
Cyber Resilient Security
Built upon a Zero Trust architecture, the system includes a silicon-based Root of Trust, cryptographically signed firmware, Secure Boot, System Lockdown, and TPM 2.0 certification. These features secure data and system integrity from factory deployment through daily operation.
Advanced System Management
Dell Integrated Remote Access Controller (iDRAC9) provides automated, agent-free server management. System administrators can monitor hardware metrics, update firmware remotely, perform diagnostics, and automate deployment tasks via standard Redfish APIs.
Capabilities
- Compute Acceleration: Supports dedicated GPUs for AI inferencing, machine learning, and VDI acceleration.
- High-Density Virtualization: Drives dense VM allocations per rack unit utilizing up to 144 cores and high-capacity DDR5 memory.
- Data Storage Management: Integrates hardware RAID controllers (PERC H365i / PERC H965i) to manage high-speed SAS, SATA, and NVMe media.
- Cold/Hot Aisle Deployment: Offers flexible front I/O or rear I/O layout options to fit specific data center cooling strategies.
- Thermal & Power Optimization: Incorporates Smart Power and Cooling technology with hot-swappable redundant power supplies and fans.
- Centralized Fleet Operations: Connects with Dell OpenManage for unified infrastructure deployment and predictive analytics.
Key Specifications
| Feature / Specification | Details |
| Series | Dell PowerEdge 17th Generation |
| Form Factor | 2U Rack-mount chassis |
| Processor | 1 × Intel Xeon 6 (E-core up to 144 cores / P-core up to 86 cores) |
| Memory | 16 × DDR5 DIMM slots, up to 6400 MT/s (Max 1TB for E-core / Max 4TB for P-core) |
| Storage Bays | Up to 32 × EDSFF E3.S Gen5 NVMe, or 12 × 3.5-inch SATA, or 24 × 2.5-inch SATA |
| Boot Subsystem | BOSS-N1 DC-MHS (2 × M.2 NVMe SSDs) |
| Expansion Slots | Up to 6 × PCIe Gen5 slots |
| Networking | Up to 2 × OCP 3.0 slots (Front or Rear) |
| GPU Support | Up to 3 × 400W DW or 4 × 75W SW GPUs |
| Power Supplies | Hot-plug redundant PSUs (800W, 1100W, 1500W, 1800W; Platinum/Titanium) |
| Management | iDRAC, iDRAC Direct, RESTful API with Redfish, RACADM CLI |
Common Use Cases
The Dell PowerEdge R570 Rack Server suits modern data center environments that require compute density, high memory capacity, and fast NVMe storage in a single-socket layout. Organizations deploy it for private cloud infrastructure, virtualization clusters, high-frequency software-defined storage, and enterprise database hosting. The precise system setup depends on processor core configuration, drive options, PCIe expansions, and memory requirements.
Real-World Deployment Scenarios
- Virtualization Host: Run dense VMware vSphere, Hyper-V, or Proxmox virtual machine clusters on single-socket core density.
- Software-Defined Storage: Deploy as a high-capacity storage node for Ceph, vSAN, and TrueNAS using 3.5-inch HDDs or high-density EDSFF NVMe drives.
- Scale-Out Databases: Host SQL Server, PostgreSQL, and MongoDB database nodes leveraging PCIe Gen5 NVMe storage speeds.
- VDI & Remote Desktop: Manage virtual desktop sessions (Citrix, VMware Horizon) using high DDR5 memory allocations and GPU add-in cards.
- AI Inferencing & Analytics: Execute edge AI inference and analytics pipelines utilizing multi-GPU support and high core counts.
- Cloud-Native Microservices: Scale containerized applications on high-efficiency Intel Xeon 6 E-core processors.
Why Choose Netmate for Dell PowerEdge R570 Rack Server?
Netmate IT helps organizations in Nepal evaluate and deploy Dell PowerEdge server configurations based on compute, storage, and networking requirements. For the PowerEdge R570, Netmate assists teams in selecting CPU types, tailoring memory and storage arrays, integrating with existing rack environments, and configuring iDRAC management tools. The goal is to deliver an enterprise Dell platform aligned with performance, thermal efficiency, and workload demands.
Frequently Asked Questions
What is the Dell PowerEdge R570 Rack Server?
The Dell PowerEdge R570 is a 2U single-socket server designed for data centers needing high compute efficiency, flexible NVMe storage, and expansion capability. It is powered by Intel Xeon 6 series processors.
What processors does the PowerEdge R570 support?
The server supports one Intel Xeon 6 processor. Configurations include E-core variants (up to 144 cores) for density and cloud workloads or P-core variants (up to 86 cores) for heavy compute operations.
How much memory can the Dell R570 hold?
The system features 16 DDR5 DIMM slots operating at up to 6400 MT/s. Depending on the processor installed, memory capacity reaches up to 1 TB with E-core processors or up to 4 TB with P-core processors.
Does the PowerEdge R570 support GPU expansion?
Yes, the R570 chassis supports accelerator configurations. It accommodates up to three 400W double-width GPUs or up to four 75W single-width GPUs depending on riser configuration.
Who should use the Dell PowerEdge R570 Server?
The platform fits enterprise organizations, cloud service providers, and data centers seeking single-socket efficiency for virtualization, software-defined storage, scale-out databases, and AI inferencing.
