PowerEdge XE9685L Server

Description

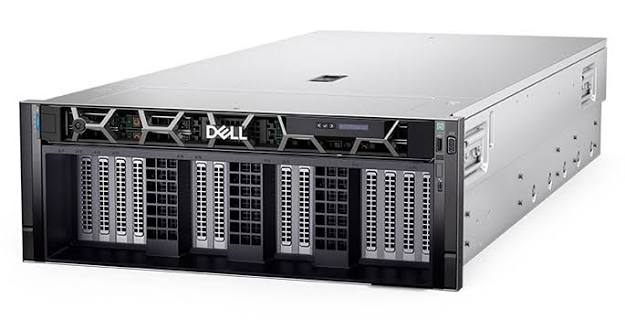

PowerEdge XE9685L Server

The PowerEdge XE9685L is a high-performance Dell server engineered specifically for compute-intensive artificial intelligence, machine learning, deep learning, and high-performance computing (HPC) environments. Built as a high-density 4U rack-mount platform, this server integrates advanced processing, GPU acceleration, and direct liquid cooling to sustain massive computational workloads without thermal throttling. It supports high-volume parallel data processing while providing specialized connectivity for high-speed network fabrics, management, and GPU interconnectivity.

The platform pairs high-core x86 central processors with full-interconnect graphics processing architecture. This design allows enterprises to train large language models (LLMs), run complex AI inferencing, perform real-time data analytics, and offload computational burdens from traditional server clusters. Dell positions the PowerEdge XE9685L platform for extreme AI compute performance, thermal efficiency, and enterprise-grade scalability.

Key Features of PowerEdge XE9685L

Advanced Parallel and AI Acceleration Processing

The PowerEdge XE9685L processes complex mathematical and neural network workloads across both host processors and GPU clusters. Dual AMD EPYC 9005 Series CPUs manage general system orchestration and data feed operations, while 8 NVIDIA HGX B200 GPUs execute parallel tensor computations for generative AI and deep learning models.

Direct Liquid Cooling Architecture

High-density GPU clusters generate substantial thermal energy that air cooling alone cannot efficiently manage. The XE9685L incorporates direct liquid cooling directly attached to the CPUs, GPUs, and NVLink switches. This cooling architecture efficiently dissipates heat, reduces power usage effectiveness (PUE) metrics, and prevents hardware throttling during sustained peak workloads.

Flexible Network and Storage Connectivity

The server provides up to 12 PCIe Gen5 x16 expansion slots alongside an OCP 3.0 networking slot. In addition, it features 2 x 1 GbE embedded network interfaces. Storage performance is accelerated using NVMe drive bays optimized for NVIDIA GPUDirect Storage (GDS), enabling direct data paths between host NVMe drives and GPU memory.

Cyber Resilient Security Infrastructure

The platform includes built-in enterprise security capabilities, including a Silicon Root of Trust, cryptographically signed firmware, Secure Boot, and Secured Component Verification. It also features System Lockdown capabilities and data-at-rest encryption via self-encrypting drives (SEDs).

Enterprise Systems Management

The XE9685L features Dell iDRAC9 for comprehensive remote and out-of-band management. Administrators can monitor system thermal telemetry, configure power profiles, enforce security policies, and manage system deployment using iDRAC RESTful APIs with Redfish, OpenManage Enterprise, and APEX AIOps Observability.

Capabilities

• Large Language Model Training: The platform manages heavy AI model training pipelines across fully interconnected NVIDIA NVLink GPU architectures.
• High-Density Inferencing: PowerEdge XE9685L processes real-time AI inferencing requests across enterprise applications without system bottlenecks.
• GPUDirect Data Offloading: High-speed NVMe storage bypasses CPU memory paths using GPUDirect Storage, feeding data directly to GPU memory.
• Infrastructure Scalability: Organizations can use PCIe Gen5 expansion slots to build high-bandwidth InfiniBand or Ethernet fabrics across GPU clusters.
• Thermal Efficiency Optimization: Dell’s integrated direct liquid cooling allows high-density deployment in modern data centers.
• Centralized Lifecycle Management: iDRAC9 and OpenManage integrations provide unified administration, update routines, and hardware monitoring across data center nodes.

Key Specifications

Common Use Cases

The PowerEdge XE9685L server fits demanding enterprise data center environments that require massive parallel computing power, deep learning acceleration, and direct liquid cooling integration. Organizations deploy it in high-performance computing centers to run advanced research models, massive AI workloads, and data analytics. It integrates seamlessly into existing high-speed network fabrics and scales effectively across large AI cluster deployments.

Real-World Deployment Scenarios

• Generative AI & LLM Training: Train complex generative AI models and large language models using dense 8-GPU interconnect topologies.
• High-Performance Computing (HPC): Execute intensive scientific simulations, molecular modeling, and engineering computations.
• Enterprise Deep Learning Inferencing: Process complex AI models at scale for real-time video analytics, natural language processing, and recommendation engines.
• Financial Modeling & Risk Analysis: Run high-frequency trading algorithms, risk simulations, and fraud detection systems using massive core counts and GPU speed.
• Medical Research & Bioinformatics: Accelerate genomic sequencing analysis and medical image processing via GPUDirect storage and high-speed memory channels.
• Sustainable Data Center AI Clusters: Deploy dense GPU computing nodes using liquid cooling infrastructure to minimize footprint and energy consumption.

Why Choose Netmate IT for PowerEdge XE9685L?

Netmate IT assists organizations in evaluating and deploying high-performance Dell AI server solutions based on their compute, thermal, and network requirements. For the PowerEdge XE9685L, Netmate helps teams select the right hardware configurations, plan rack power and liquid cooling integration, connect high-speed network fabrics, and configure hardware management services. The goal is to deliver a tailored server solution that aligns with the organization’s performance, scalability, security, and enterprise infrastructure goals.

Frequently Asked Questions

What is the PowerEdge XE9685L server?

The PowerEdge XE9685L is a high-density 4U liquid-cooled enterprise rack server designed by Dell for compute-heavy AI, deep learning, and HPC workloads. It features dual AMD EPYC 9005 Series processors and 8 NVIDIA HGX B200 GPUs.

What processors and GPUs are supported on the PowerEdge XE9685L?

The system supports up to two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores per CPU. For GPU acceleration, it houses 8 NVIDIA HGX B200 180GB SXM6 GPUs fully interconnected with NVIDIA NVLink.

What type of cooling system does the XE9685L use?

The PowerEdge XE9685L utilizes an advanced direct liquid cooling (DLC) system specifically designed to cool the high-wattage CPUs, GPUs, and NVLink switches to keep operating temperatures optimal under max load.

How much memory and storage can the server hold?

The server features 24 DDR5 DIMM slots supporting up to 3 TB of DDR5 RDIMM memory at speeds up to 6400 MT/s. For storage, it supports up to 8 x 2.5-inch NVMe drives providing up to 122.88 TB, alongside a dual M.2 NVMe BOSS-N1 card for boot drive redundancy.

Who should deploy the PowerEdge XE9685L?

The server is built for enterprises, research institutions, and cloud service providers that require massive parallel GPU processing, direct liquid cooling infrastructure, and scalable PCIe Gen5 expansion for AI model training, inferencing, and complex HPC simulation environments.
