OUTPUT |
| Output Volt Amp Capacity (VA) | 60000 | | Output kVA Capacity (kVA) | 60 | | Output Watt Capacity (Watts) | 48000 | | Nominal Output Voltage(s) Supported | 220/380V; 230/400V; 240/415V; 3-Phase Wye | | Frequency Compatibility | 50 / 60 Hz | | Output Receptacles | Hardwire | | Output AC Waveform (Battery Mode) | Pure Sine wave | | Output Nominal Voltage | 220/380V, 230/400V or 240/415V AC, 3-phase, 4-wire + ground, wye | | Output Voltage Regulation | Maintains pure sine wave output at all times, regulated within 1% of nominal output voltage, with less than 3% total harmonic distortion (using IGBT Inverter) | | Output Frequency Regulation | Regulates line frequency at 50 or 60 Hz, +/- .05 Hz |
|
INPUT |
| Nominal Input Voltage(s) Supported | 220/380V (3ph wye); 230/400V (3ph wye); 240/415V (3ph wye) | | UPS Input Connection Type | Hardwire | | Recommended Electrical Service | 3-Phase Wye, 4 wire (L1, L2, L3, N, G) | | Maximum Input Amps | 79 | | Maximum Input Amps Details | 73A/76A/79A | | Input Connection Type | Hardwire | | Input Phase | 3-Phase |
|
BATTERY |
| Expandable Battery Runtime | Supports extended runtime with additional stand-alone external battery modules: Models BP480V26B and BP480V40C | | DC System Voltage (VDC) | +/- 240VDC | | Full Load Runtime | 5.5 minutes (48,000W) with included BP480V26B battery pack | | Half Load Runtime | 14 minutes (24,000W) with included BP480V26B battery pack | | Battery Pack Accessory (Optional) | External battery modules: Models BP480V26B and BP480V40C | | Typical Battery Lifespan | 3-6 years, depending on usage | | Expandable Runtime | Yes |
|
VOLTAGE REGULATION |
| Voltage Regulation Description | On-line, double-conversion process enables UPS to maintain output voltage within +/-1% of nominal voltage at all times | | Overvoltage Correction | Maintains continuous operation without using battery power during overvoltages to 276-477V AC (3-phase, 4-wire, wye), reducing output within 1% of nominal | | Brownout Correction | Maintains continuous operation without using battery power during brownout/undervoltage conditions to 173-300V AC (3-phase, 4-wire, wye) |
|
USER INTERFACE, ALERTS & CONTROLS |
| Front Panel LEDs | Selectable LCD Display: Displays Real-Time Event Log with up to 500 events listed. Also displays a wide range of UPS operational and fault/warning conditions including operational mode, alarm/shutdown conditions, input/output voltage/frequency, battery voltage, load percentage and more. 4-LED Display: Displays normal AC input, on battery power, bypass input and fault conditions | | Switches | ON button turns UPS inverter on. OFF button turns UPS inverter off. LCD Display Control Buttons browse through and select items displayed on LCD screen. EPO (Emergency Power Off) button turns UPS output off and disables Bypass output | | Audible Alarm | Alarms signal a variety of operational conditions: low battery, overload, shutdown, bypass and more |
|
SURGE / NOISE SUPPRESSION |
| UPS AC Suppression Joule Rating | 5950 | | EMI / RFI AC Noise Suppression | Yes | | AC Suppression Response Time | Instantaneous |
|
PHYSICAL |

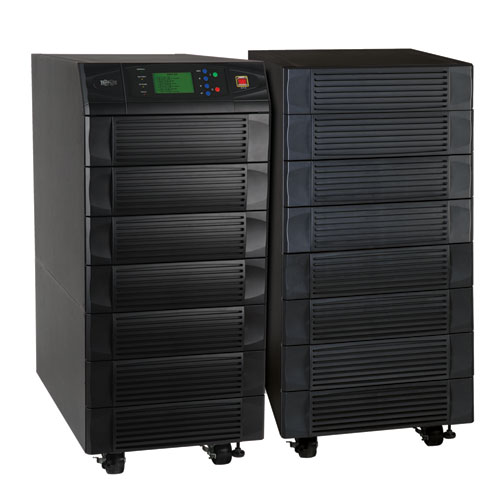

| Installation Form Factors Supported with Included Accessories | Tower | | Primary Form Factor | Tower | | Shipping Dimensions (hwd / cm) | 139.7 x 72.4 x 107.9 (UPS) 124.4 x 73.2 x 108.7 (battery pack) | | Shipping Weight (kg) | 278.3 (UPS) 551.1 (battery pack) | | Unit Dimensions (hwd / cm) | 116.8 x 52.1 x 85.6 (UPS) 116.8 x 52.1 x 85.6 (battery pack) | | Unit Weight (kg) | 694 | | Cooling Method | Built-in cooling fans | | Material of Construction | Steel | | Form Factors Supported | Tower |
|
ENVIRONMENTAL |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit, -15 to +50 degrees Celsius | | Relative Humidity | <90%, non-condensing | | AC Mode BTU / Hr. (Full Load) | 10509 | | Operating Temperature | +32 to +104 degrees Fahrenheit, 0 to +40 degrees Celsius |
|
COMMUNICATIONS |
| Communications Interface | DB9 Serial; Slot for SNMP/Web interface | | Network Monitoring Port | Built-in RS-232 communication port | | EPO Port | EPO (emergency power off) interface | | SNMP Compatibility | Built-in accessory slot accommodates internal SNMP card(Model SNMPWEBCARD) and other network accessories |
|
LINE / BATTERY TRANSFER |
| Transfer Time (Line Power to Battery Mode) | Zero transfer time: True on-line UPS continuously converts incoming AC to DC, then back to AC. When line power is interrupted, UPS maintains continuous output from battery reserves with absolutely no disruption in output AC power | | Low Voltage Transfer to Battery Power | Maintains continuous operation without using battery power during brownout/undervoltage conditions to 173-300V AC (3-phase, 4-wire, wye). Below this point, output is maintained utilizing reserve battery power | | High Voltage Transfer to Battery Power | Maintains continuous operation without using battery power during overvoltages to 276-477V AC (3-phase, 4-wire, wye), reducing output within 1% of nominal. Above this point, output is maintained utilizing reserve battery power |
|
SPECIAL FEATURES |
| Cold Start | Inverter can be cold-started via the control panel to enable temporary AC output during a power failure |
|
CERTIFICATIONS |
| UPS Certifications | CE | | Certifications | CE (EN62040-1-1) |
|
WARRANTY |
| Product Warranty Period (International) | 2-year limited warranty | | Product Warranty Period (Mexico) | 1-year limited warranty | | Product Warranty Period (Puerto Rico) | 2-year limited warranty | | Optional Coverage | Extended warranties and on-site service contracts available for select opportunities; contact Tripp Lite for details |
|
