beroNet 2 BRI VoIP Gateway

Product Description

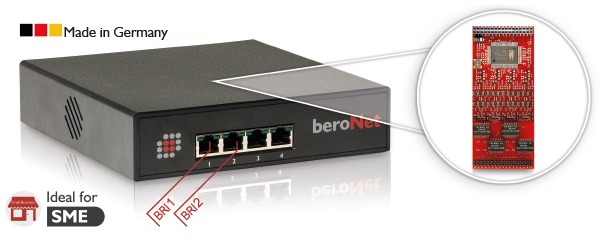

The beroNet 2 BRI VoIP Gateway (BFSB2S0) contains 2 BRI (S0) ports. It can be connected to the public telephone network or to an internal S0 connection of the PBX. In addition the classic PBX can be connected via the Gateway with the VoIP connection or a VoIP system. By adding a virtual CAPI a fax server can also be connected. The beroNet 2 BRI Gateway is the ideal device to make a PSTN connection without quality degradation and optimally join the advantages of ISDN & VoIP. It allows you to cover over 85% of the PBX market and is the ideal solution for small and medium size companies.


» Connects SIP with ISDN
» ISDN Port separately switchable in TE or NT Mode
» For multiple devices as well as system connections
» Cloud managed
» Cascadable using PCM
» High quality ABS plastic housing, lightweight & tough
» Virtual CAPI available


» 2 BRI (S0) ISDN Ports
» The Port is configurable in NT or TE Mode with PIN interchanging
» Termination resistors (100 Ohm) per line configurable
» TE / NT and Termination transposable in Software (Jumperfree)
» Layer 2 is Q.921 and Layer 3 is Q.931 (EuroISDN DSS1) compatible
» DSS1 Feature Set: CLIP/No-Screening, CLIR, COLP, UUS, MCID, CD, CNIP AOC-D
» Q.SIG Feature Set: CNIP
» Optional CAPI 2.0 available (Fax, voice)
» Codecs: G.723.1 and Annex A, G.729 a/b, G.726, (up to 4 channels)
» G.711 and including echo cancellation up to 16 channels
» G.168/G.165 echo cancellation with echo path change detection, up to 128ms
» Voice activity detection / comfort noise generation
» DTMF digit detection and generation
» T.38 Fax Relay (V.27, V.29 and V.17) (up to 4 channels)
» SIP user agent IETF RFC3261 compatible
» SIP via UDP/TCP with optional TSL support, SRTP
» “TDM Bridging” of two beroNet devices via PCM Bus
» Power supply: 110-230V, operating 12V DC at 2A
» Compliance: CE (EN55022, EN55024, EN60950)


1 BRI VoIP Gateway Datasheet


Possible scenarios


Analog SIP Gateway:

» Advantages of both worlds: ISDN & VoIP
» Further use of High-Quality-ISDN
» Integration of ISDN Dataservice & Video Telephony
