Description

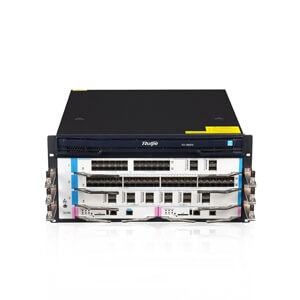

Feature highlights of RG-S8600E Series Core Switch:
1. High performance for large campus network
2. Virtualization for Demand-based Allocation
3. Variety of line cards to choose, wired wireless integration
4. Superior Reliability.
Specifications :
Model | RG-S8605E | RG-S8607E | RG-S8610E |
|---|---|---|---|
Fabric Engine Slots | NA | NA | 4 |
Switching Capacity | 22.25Tbps/88.62Tbps | 37.09Tbps/147.7Tbps | 59.35Tbps/236.33Tbps |
Packet Forwarding Rate | 720Mpps | 900Mpps | 3840Mpps |
Number of 10GE Ports | 24 (ED module, 10GE ports) 144 (DC module, 10GE ports) | 40 (ED module, 10GE ports) 240 (DC module, 10GE ports) | 64 (ED module,10GE ports) 384 (DC module,10GE ports) |
Number of 40GE ports | 36 | 60 | 96 |
PoE | Support | Support | Support |
ARP table | 170K(ED module) 75K(DC module) | 170K(ED module) 75K(DC module) | 170K(ED module) 75K(DC module) |
MAC Address | 512K(ED module) 288K(DC module) | 512K(ED module) 288K(DC module) | 512K(ED module) 288K(DC module) |
Routing Table Size (IPv4/ IPv6) | 12K/6K(ED module) 12K/6K(DC module) | 12K/6K(ED module) 12K/6K(DC module) | 12K/6K(ED module) 12K/6K(DC module) |
Multicast Entries (IPv4/IPv6) | 16K/8K(ED module) 16K/8K(DC module) | 16K/8K(ED module) 16K/8K(DC module) | 16K/8K(ED module) 16K/8K(DC module) |
ACL Entries | 7K(ED module) 8K(DC module) | 7K(ED module) 8K(DC module) | 7K(ED module) 8K(DC module) |
VLAN | 4K | 4K | 4K |
MST | 64 | 64 | 64 |
Maximum Aggregation Port (AP) | 256 | 256 | 256 |
Virtual Routing and Forwarding (VRF) Instances | 2K(ED module) 2K(DC module) | 2K(ED module) 2K(DC module) | 2K(ED module) 2K(DC module) |
Device Virtualization | VSU3.0 (Virtual Switch Unit) Virtualized Bandwidt up to 2.56Tbps VSD (Virtual Switch Device) | ||
Network Virtualization | L2GRE(ED/DC module support) | ||
SDN | OpenFlow 1.0 | ||
L2 Features | Jumbo Frame 802.1Q STP, RSTP, MSTP GVRP QinQ, flexible QinQ LLDP | ||
VLAN | Up to 4K 802.1q VLANs Super VLAN Protocol VLAN Private VLAN QinQ | ||
IPv4 Features | Static routing, RIP, OSPF, IS-IS, BGP4 VRRP Equal-cost routing Policy-based routing GRE Tunnel | ||
IPv6 Features | Static routing OSPFv3, BGP4+, IS-ISv6, MLDv1/v2 VRRPv3 Equal-cost routing Policy-based routing Manual tunnel, Auto tunnel, ISATAP tunnel, GRE tunnel | ||
Multicast | IGMP v1, v2, v3 IGMP Snooping IGMP Proxy Multicast routing protocols (PIM-DM, PIM-SM, PIM-SSM) MLD Multicast static routing | ||
MPLS | MPLS forwarding MPLS VPN/VPLS VPWS (ED/EF/DB/DC module support) | ||
ACL | Standard, Extended, Expert ACL ACL 80 IPv6 ACL | ||
QoS | 802.1p Queue scheduling mechanisms (SP, WRR, DRR, SP+WRR, SP+DRR) RED/WRED Input/output port-based speed limit | ||
Reliability | Independent fabric engine and control engine design which allows separation of forwarding and control planes Control engine supports 1+1 redundancy Fabric engine supports N+1 redundancy Power supply and fan support N+M redundancy Passive backplane design to avoid single point of failure Hot-swappable components Support hot patch and online patch upgrade GR for OSPF/IS-IS/BGP BFD for VRRP/OSPF/BGP4/ISIS/ISISv6/MPLS/static routing | ||
Security | NFPP (Network Foundation Protection Policy) CPP (CPU Protection) DAI, Port Security, IP Source Guard 802.1x Portal authentication, RADIUS and TACACS+ user login authentication uRPF Account privileges and password security policy Unknown multicasts are not delivered to CPU and support unknown unicasts suppression Support SSHv2 to provide a secure and encrypted channel for user login | ||
Manageability | Console/AUX Modem/Telnet/SSH2.0 command line configuration FTP, TFTP, Xmodem, SFTP file upload/download management SNMP V1/V2c/V3 RMON NTP clock Fault alarm and self-recovery System log IPFIX flow analysis | ||
Dimensions | 442 x 595 x 219.5 (5U) | 442 x 595 x 352.8 (8U) | 442 x 821 x 797.3 (18U) |
Power Supply | RG-PA1600I: 90-180V~1200W; 180-264V~ 1600W RG-PA600I: 90-180V~ 600W; 180-264V~ 600W RG-PD1600I: -40.5VDC-75VDC ~1400W RG-PD600I: -40.5VDC-75VDC ~600W RG-PA1600I-P: 90-180V~1200W; 180-264V~ 1600W | ||
MTBF | 213K hours | 229K hours | 259K hours |
Temperature | Operating temperature: 0℃ to 50℃ Storage temperature: -40℃ to 70℃ | ||
Humidity | Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH | ||
Operating Altitude | -500 to 5000M | ||
Safety | IEC 60950-1, EN 60950-1 | ||
Emissions | EN 300 386, EN 55022/55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11 | ||
Weight and Typical Power
Below table lists maximum power consumption of the RG-S8600E switch platform.
| Component | Weight | Maximum Power |
| Main Chassis | ||
Ruijie RG-S8605E chassis with fan | 20.2 kg | 288W |
Ruijie RG-S8607E chassis with fan | 30.2 kg | 432W |
Ruijie RG-S8610E chassis with fan | 78.66 kg | 730W |
Control Engine | ||
M8600E-CM | 1.68 kg | 40W |
Power Supply | ||
RG-PA600I – 600W | 1.64 kg | N/A |
RG-PD600I – 600W | 1.3 kg | |
RG-PA1600I – 1600W | 2.04 kg | |
RG-PD1600I – 1400W | 1.6 kg | |
RG-PA1600I-PL – 1600W | 1.6 kg | |
Line Card & Service Module | ||
M8600E-44SFP4XS-ED | 3.76 kg | 135W |
M8600E-48GT-ED | 3.7 kg | 95W |
M8600E-24GT20SFP4XS-ED | 3.76 kg | 100W |
M8600E-08XS-ED | 3.42 kg | 85W |
M8600E-48GT-P-ED | 4.04 kg | 815W |
M8600E-48XS-DC | 4.25 kg | 212W |
M8600E-12QXS-DC | 3.92 kg | 200W |
M8600E-24XS4QXS-DC | 4.0 kg | 188W |
RG-S8600E-WS-ED | 4.58 kg | 190W |
Applications
Large Campus Network Core/Aggregation
Medium/Small-Scaled Network Core
Data Center Network Core
Campus Network & Data Center Network Core
